Removal Procedure

  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT  .
  3. Pull the theft deterrent control module (2) away from the lock cylinder housing (1).

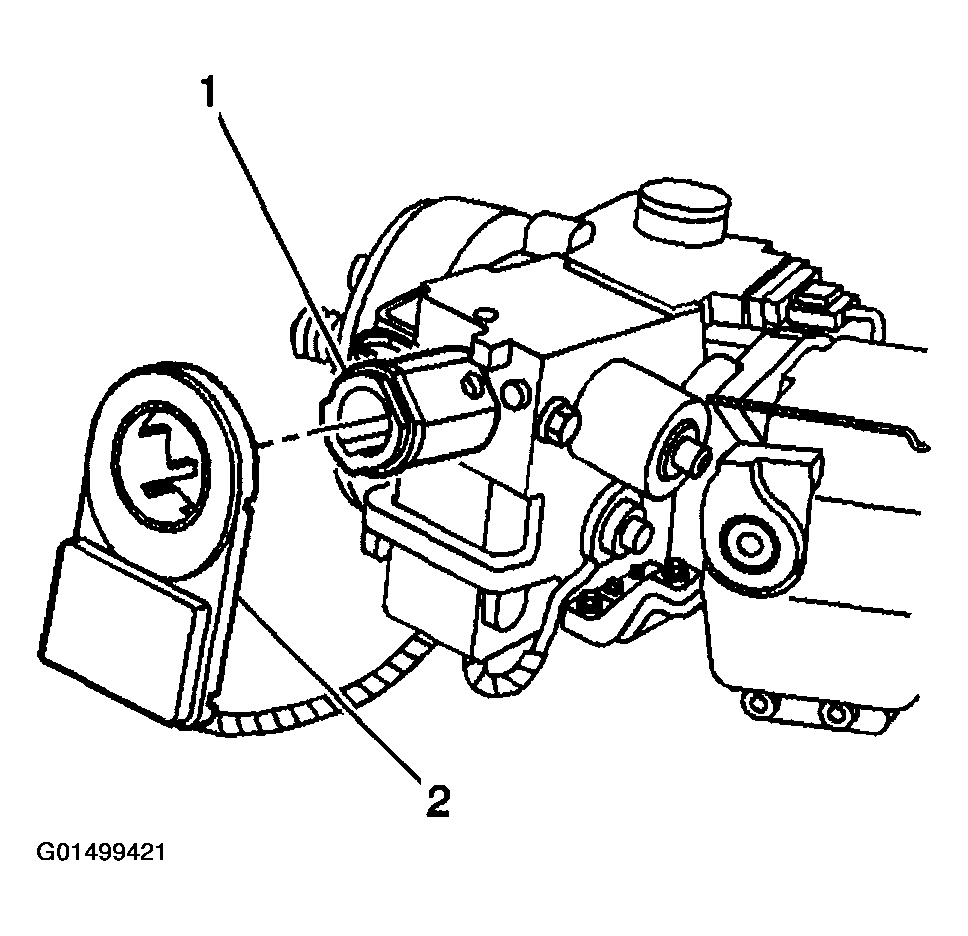

    Fig 1: Removing Theft Deterrent Control Module Away From Lock Cylinder Housing
    G01499421Courtesy of GENERAL MOTORS CORP.
  4. Depress the 2 white spring loaded retainers on the ignition switch.
  5. Slide the ignition switch downward away from the ignition lock cylinder case.
  6. Disconnect the electrical connector from the ignition switch.

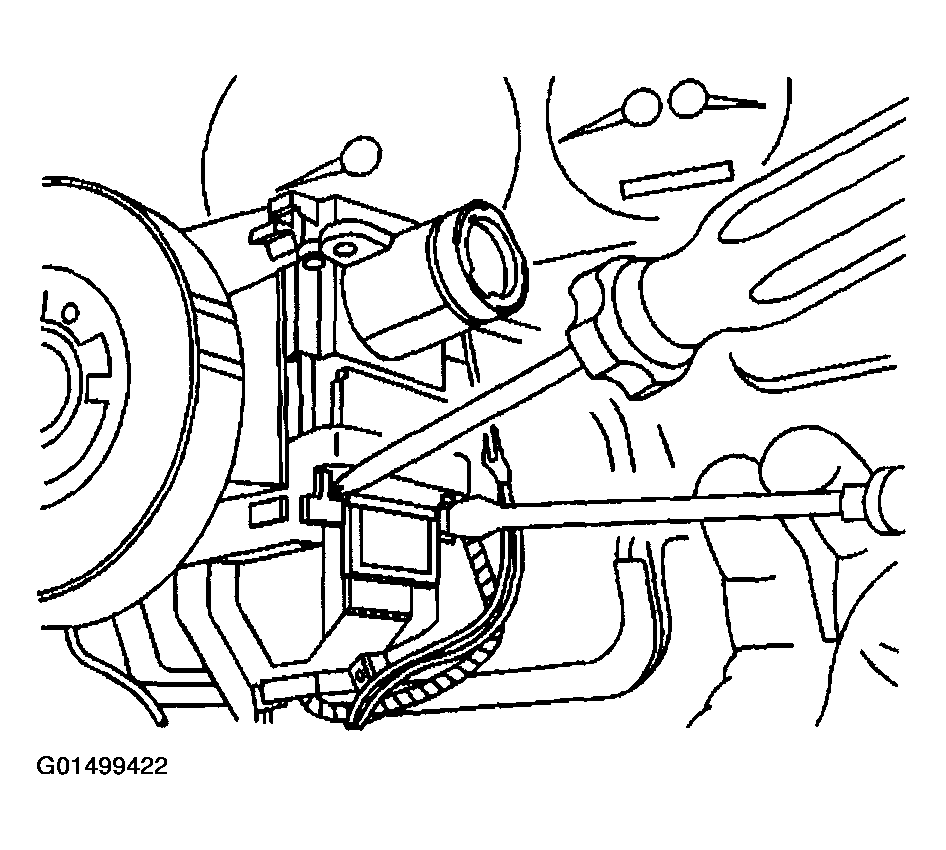

    Fig 2: Disconnecting Electrical Connector From Ignition Switch
    G01499422Courtesy of GENERAL MOTORS CORP.
