Installation Procedure

  1. Insert the ignition lock cylinder through the trim cover in the upper steering column
  2. Align the lock cylinder retaining tab and the position tab with the slots in the lock housing.
  3. Completely push the lock cylinder into the lock housing.
  4. Install the retaining screws to the upper steering trim cover.

    Tighten  Tighten the screws to 3.5 N.m (31 lb in).

  5. Match the tab slots on the lower trim cover with the locking tabs on the upper trim cover.

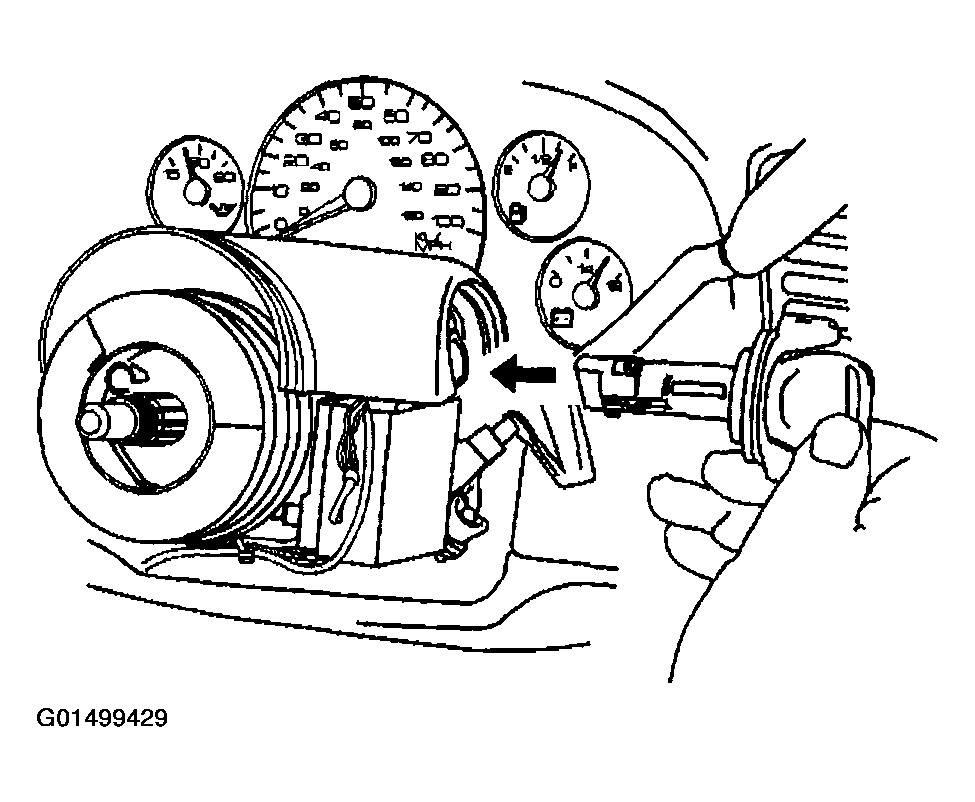

    Fig 1: Installing Ignition Lock Cylinder
    G01499429Courtesy of GENERAL MOTORS CORP.
  6. Tilt the lower trim cover up and slide the lower trim cover until the locking tabs snap into the tab slots.
  7. Install the lower trim cover screws to the steering column.

    Tighten  Tighten the screws to 1.5 N.m (13 lb in).

  8. Install the tilt lever close out plate.
  9. Install the steering wheel. Refer to STEERING WHEEL REPLACEMENT  .
  10. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  11. Connect the battery negative cable.
    Fig 2: Installing Tilt Lever Close Out Plate
    G01499430Courtesy of GENERAL MOTORS CORP.
