Lock System Does Not Unlock

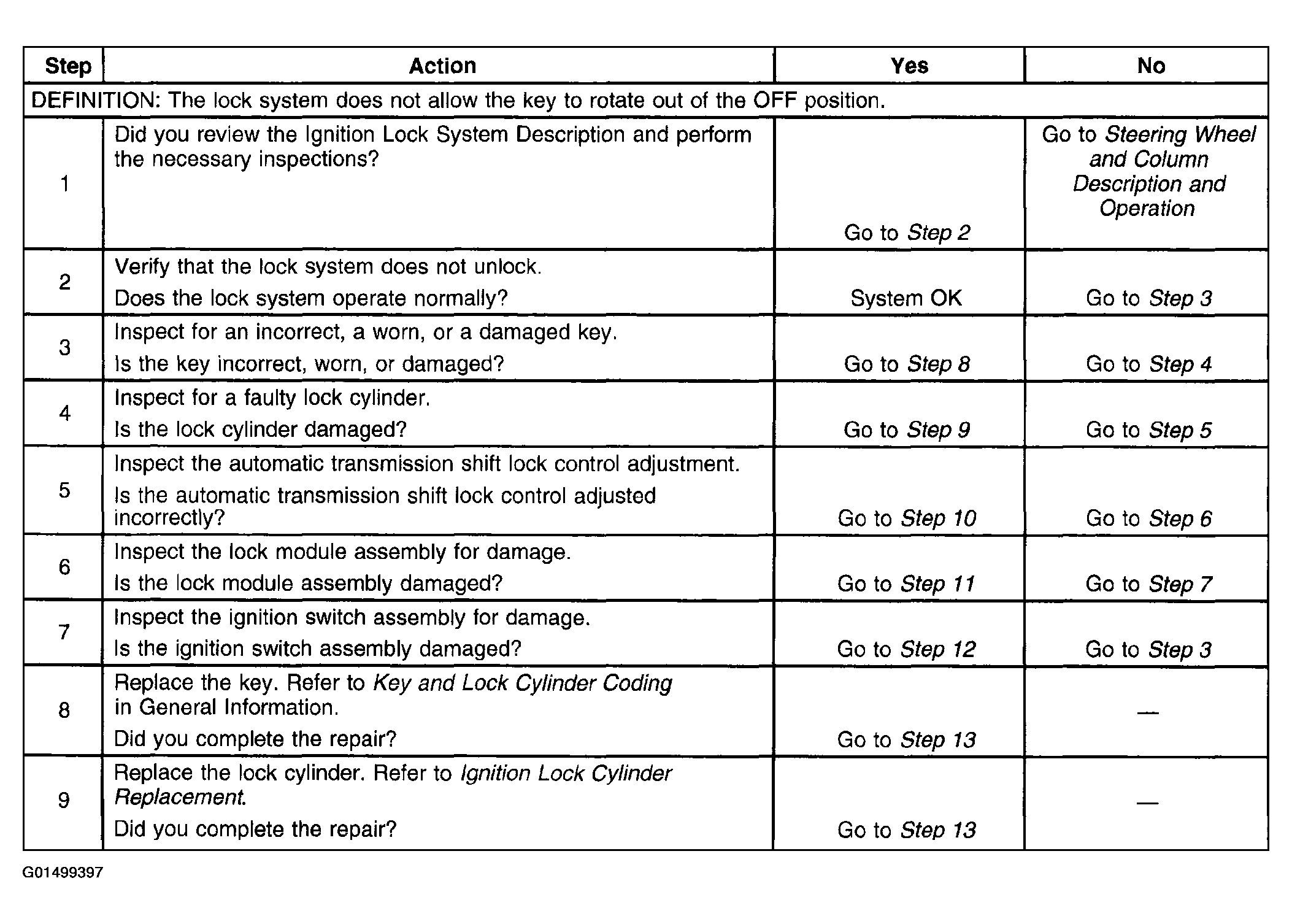

Fig 1: Lock System Does Not Unlock Diagnostic Procedure (Steps 1-9)
G01499397Courtesy of GENERAL MOTORS CORP.

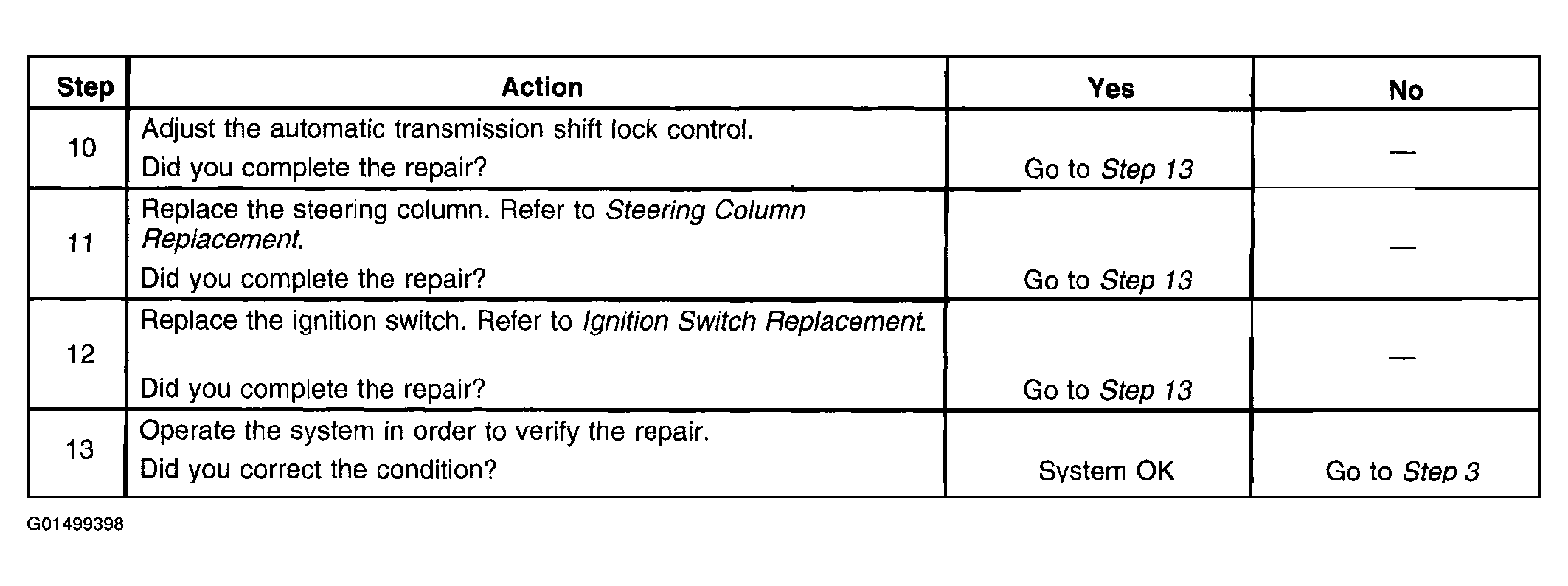

Fig 2: Lock System Does Not Unlock Diagnostic Procedure (Steps 10-13)
G01499398Courtesy of GENERAL MOTORS CORP.
