Home >> Pontiac >> 2003 >> Aztek AWD >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Connector End Views >> Connector End Views >> Security Indicator Lamp Connector End View

Security Indicator Lamp Connector End View

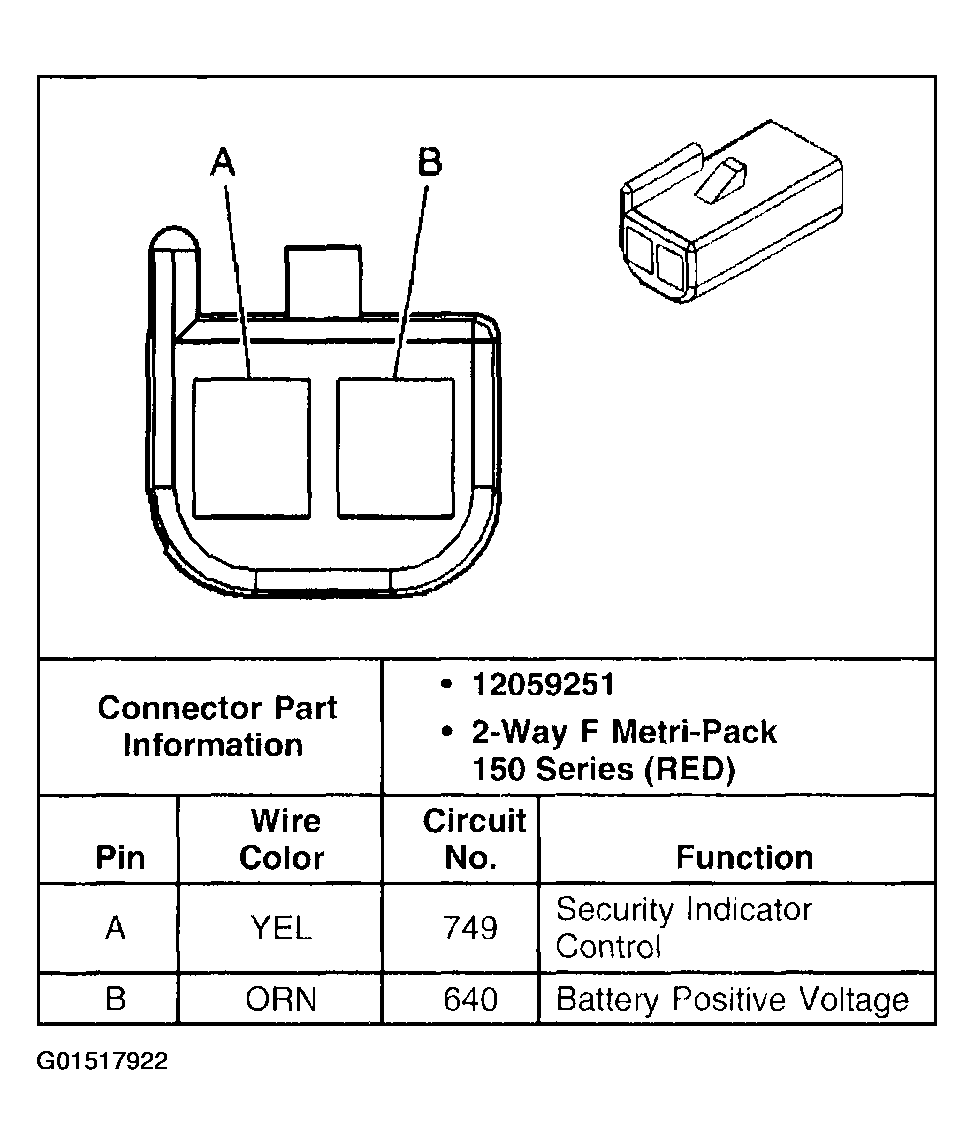

Fig 1: Security Indicator Lamp

G01517922

Courtesy of GENERAL MOTORS CORP.
