Right Steering Wheel Controls Connector End View

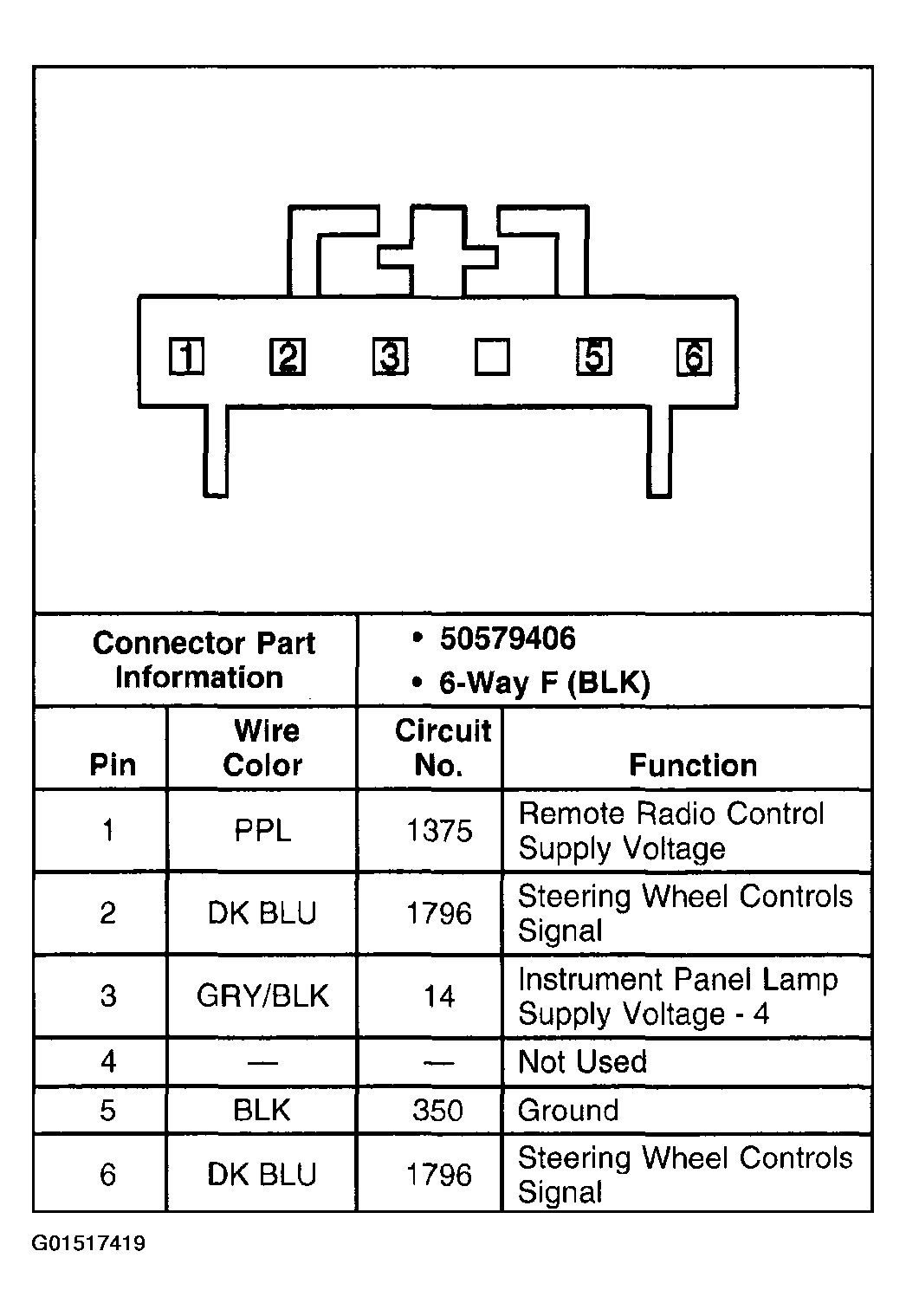

Fig 1: Right Steering Wheel Controls

G01517419

Courtesy of GENERAL MOTORS CORP.
