Recirculation Actuator Connector End View

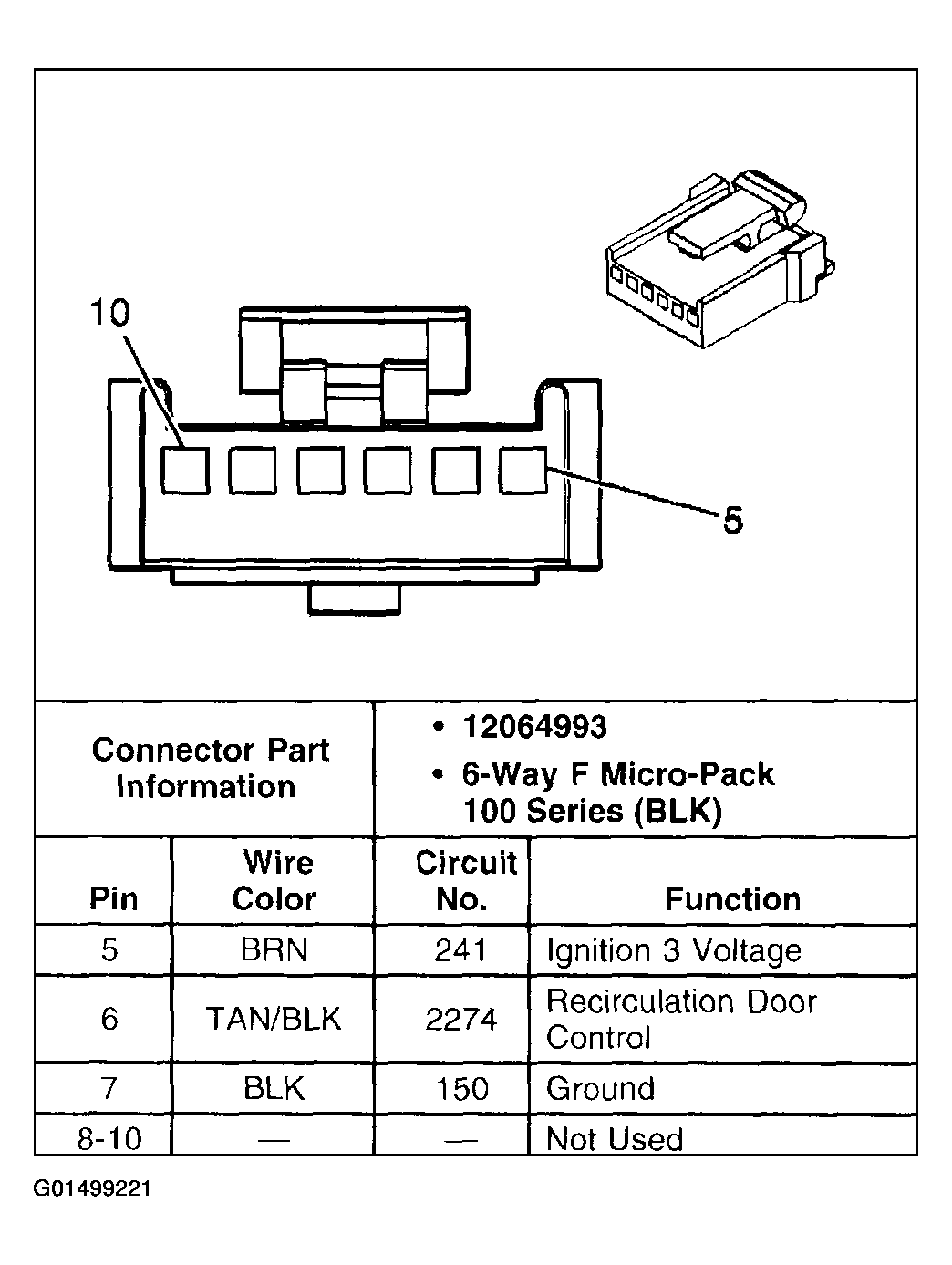

Fig 1: Recirculation Actuator

G01499221

Courtesy of GENERAL MOTORS CORP.

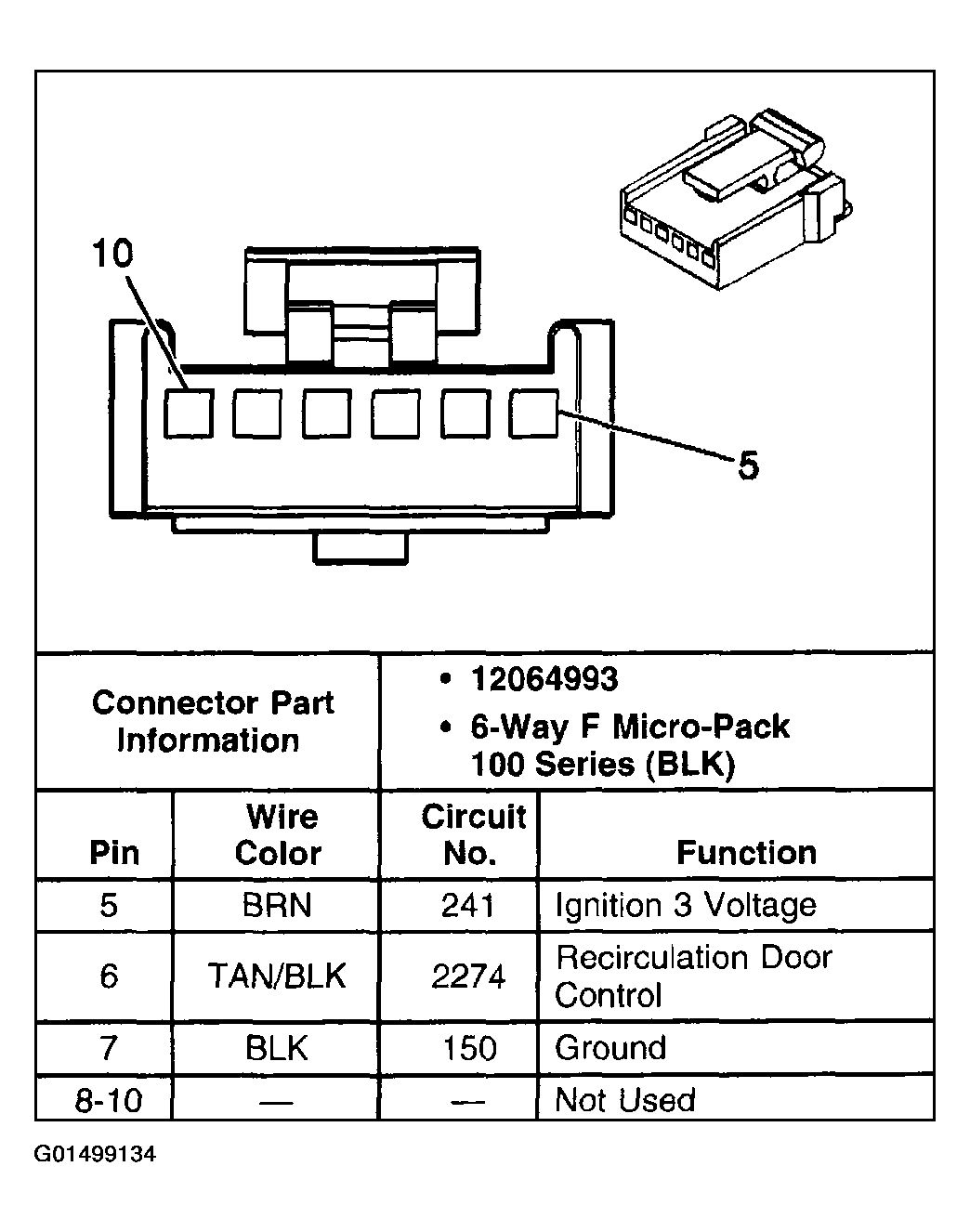

Fig 1: Recirculation Actuator

G01499134

Courtesy of GENERAL MOTORS CORP.
