Rear Seat Audio Control Connector End View

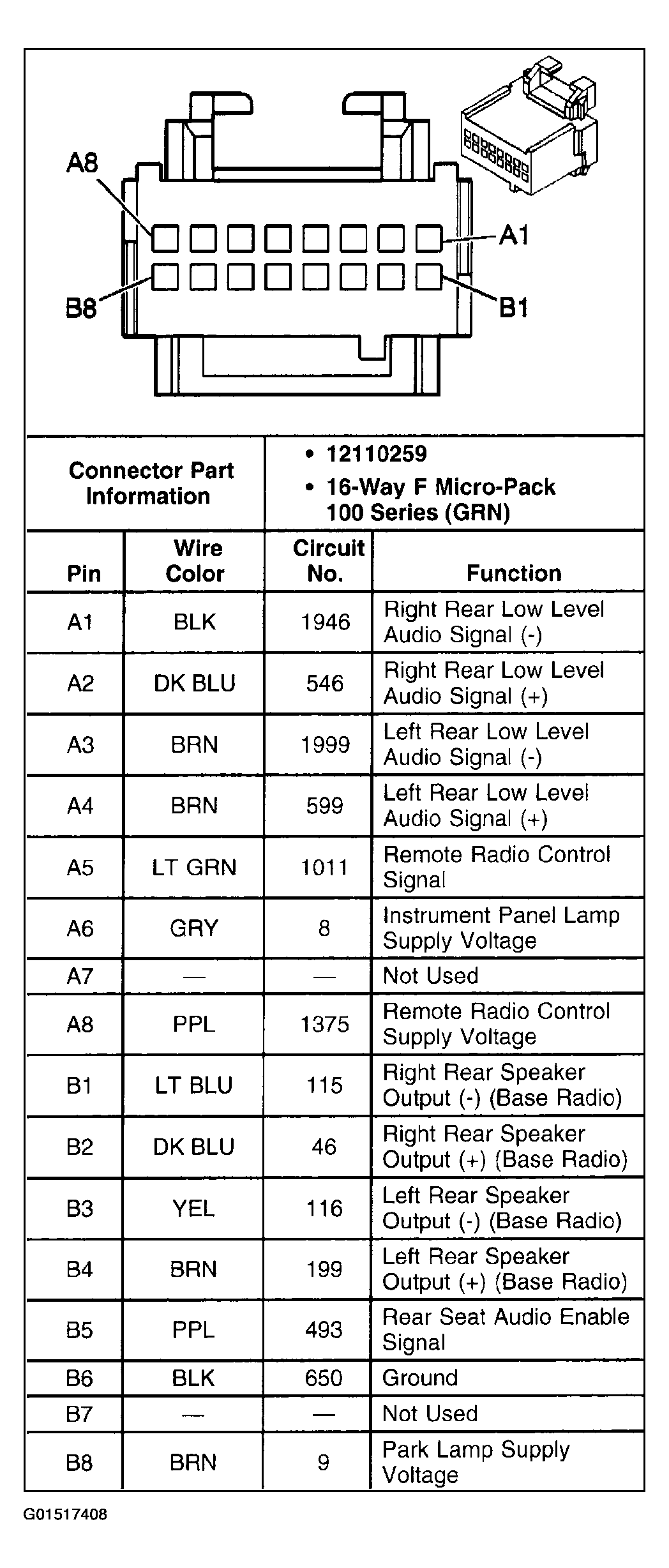

Fig 1: Rear Seat Audio Control

G01517408

Courtesy of GENERAL MOTORS CORP.
