Home >> Pontiac >> 2003 >> Aztek AWD >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Connector End Views >> Connector End Views >> Radio Connector End View C2

Radio Connector End View C2

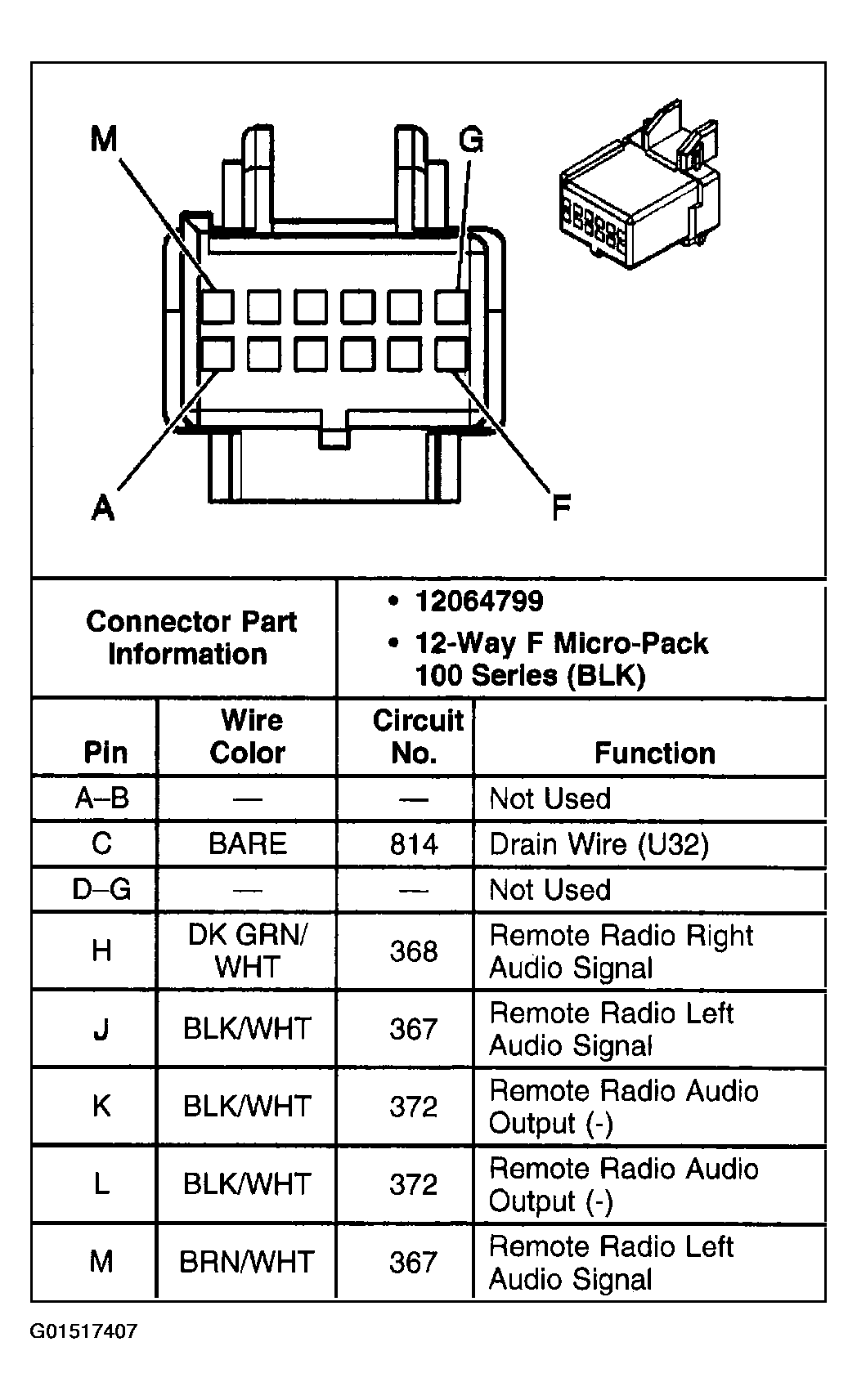

Fig 1: Radio C2

G01517407

Courtesy of GENERAL MOTORS CORP.
