RF Door Tweeter Connector End View

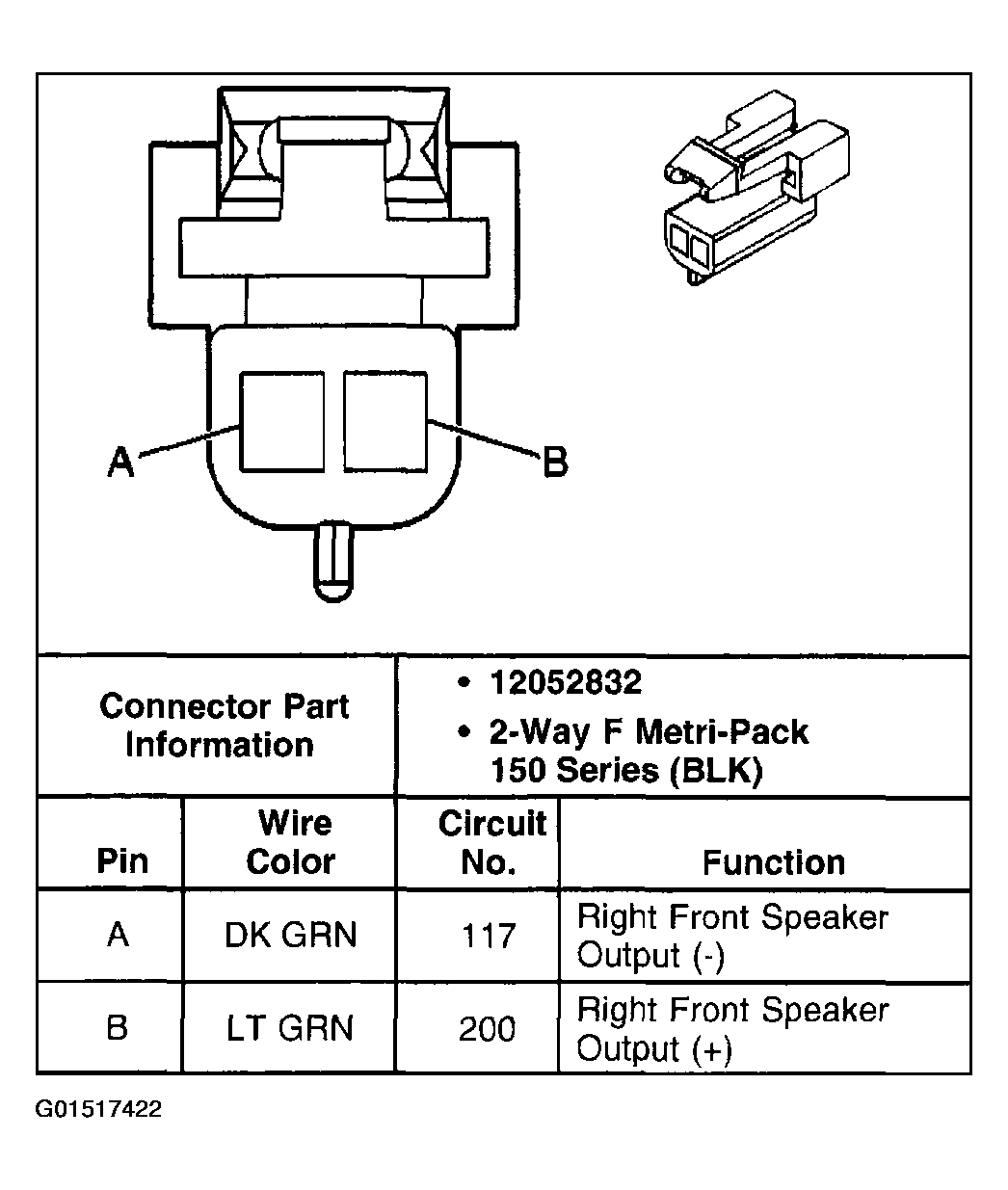

Fig 1: RF Door Tweeter

G01517422

Courtesy of GENERAL MOTORS CORP.
