Mode Actuator Connector End View
Mode Actuator Connector End View

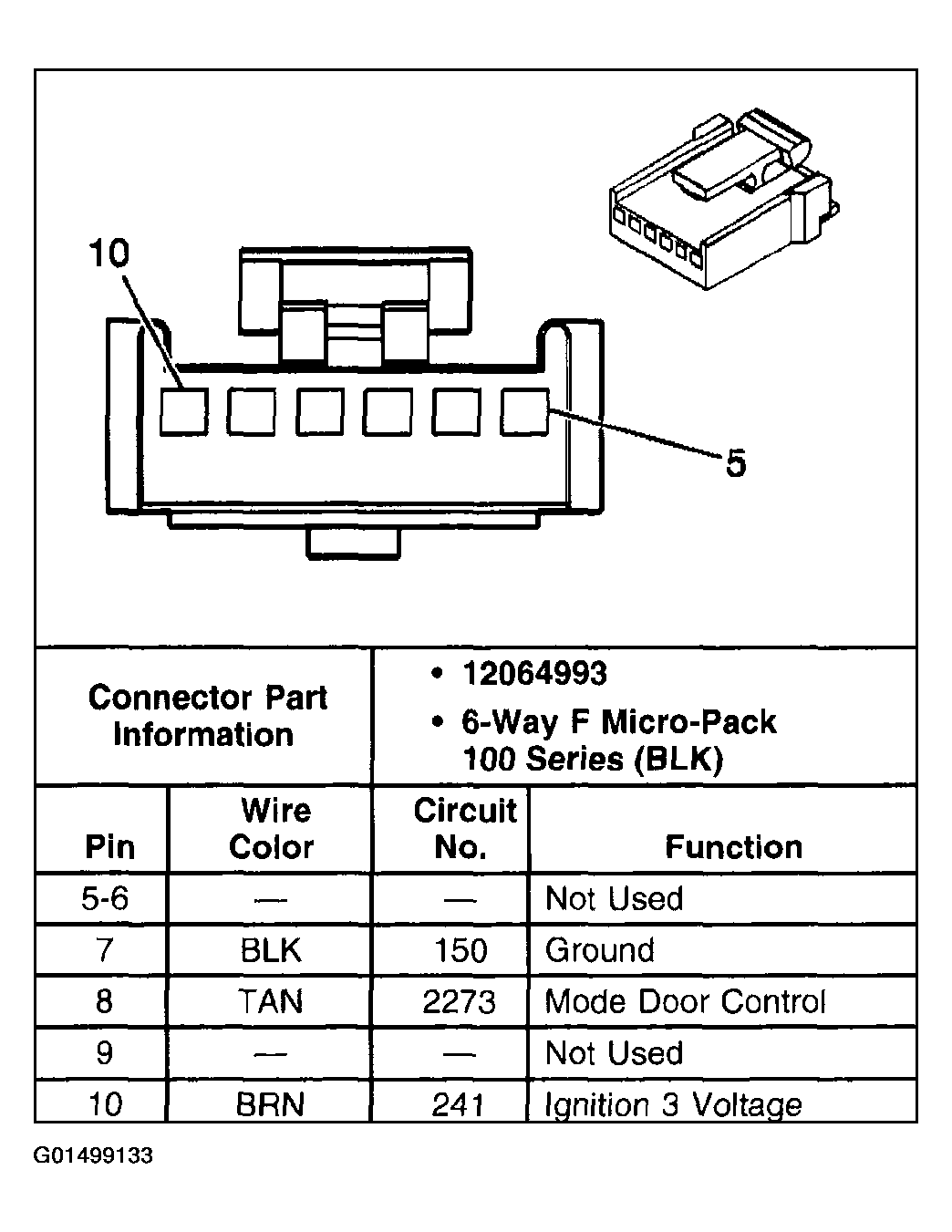

Fig 1: Mode Actuator
Courtesy of GENERAL MOTORS CORP.

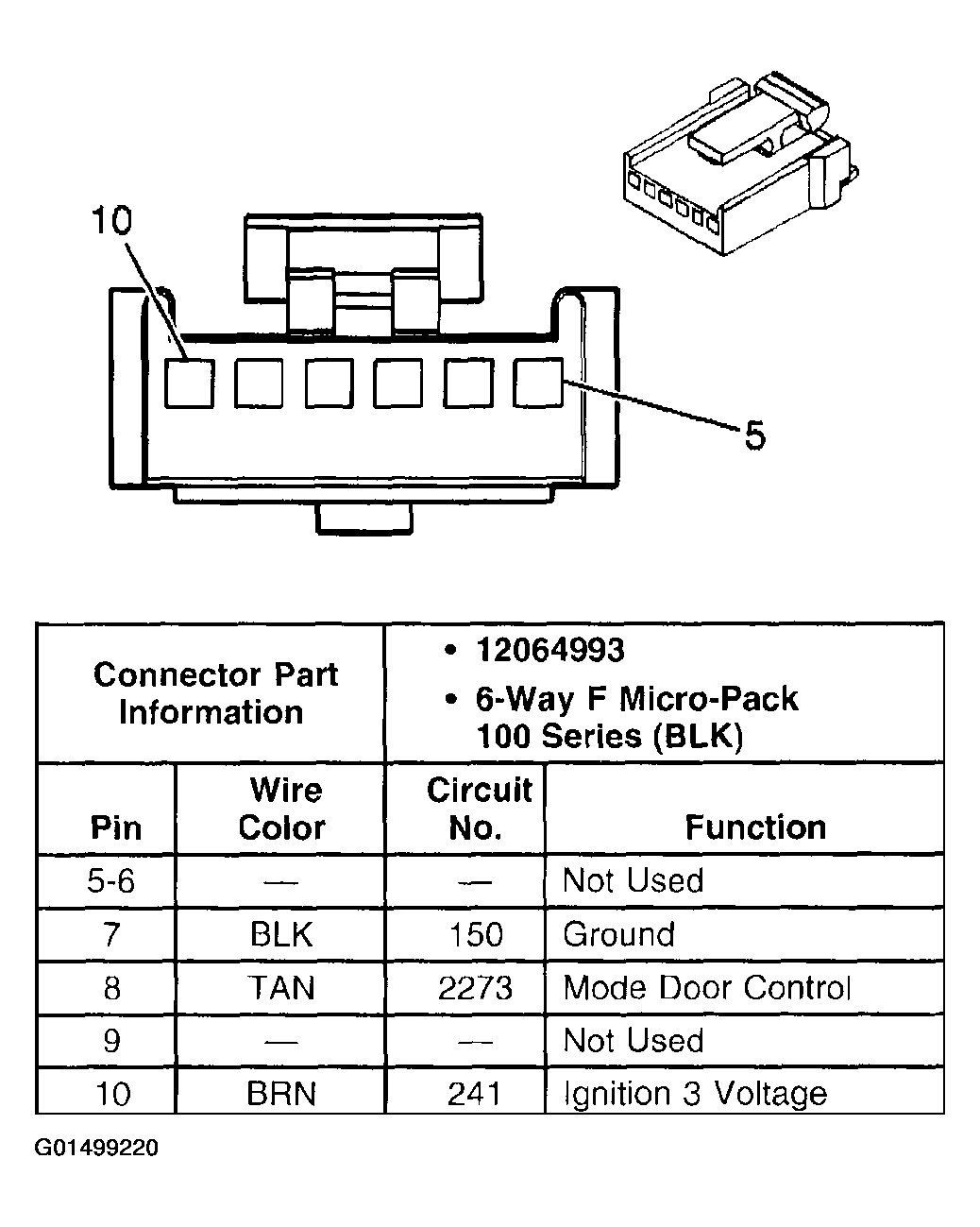

Fig 1: Mode Actuator
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
