Memory Seat And Mirror Switch Connector End View

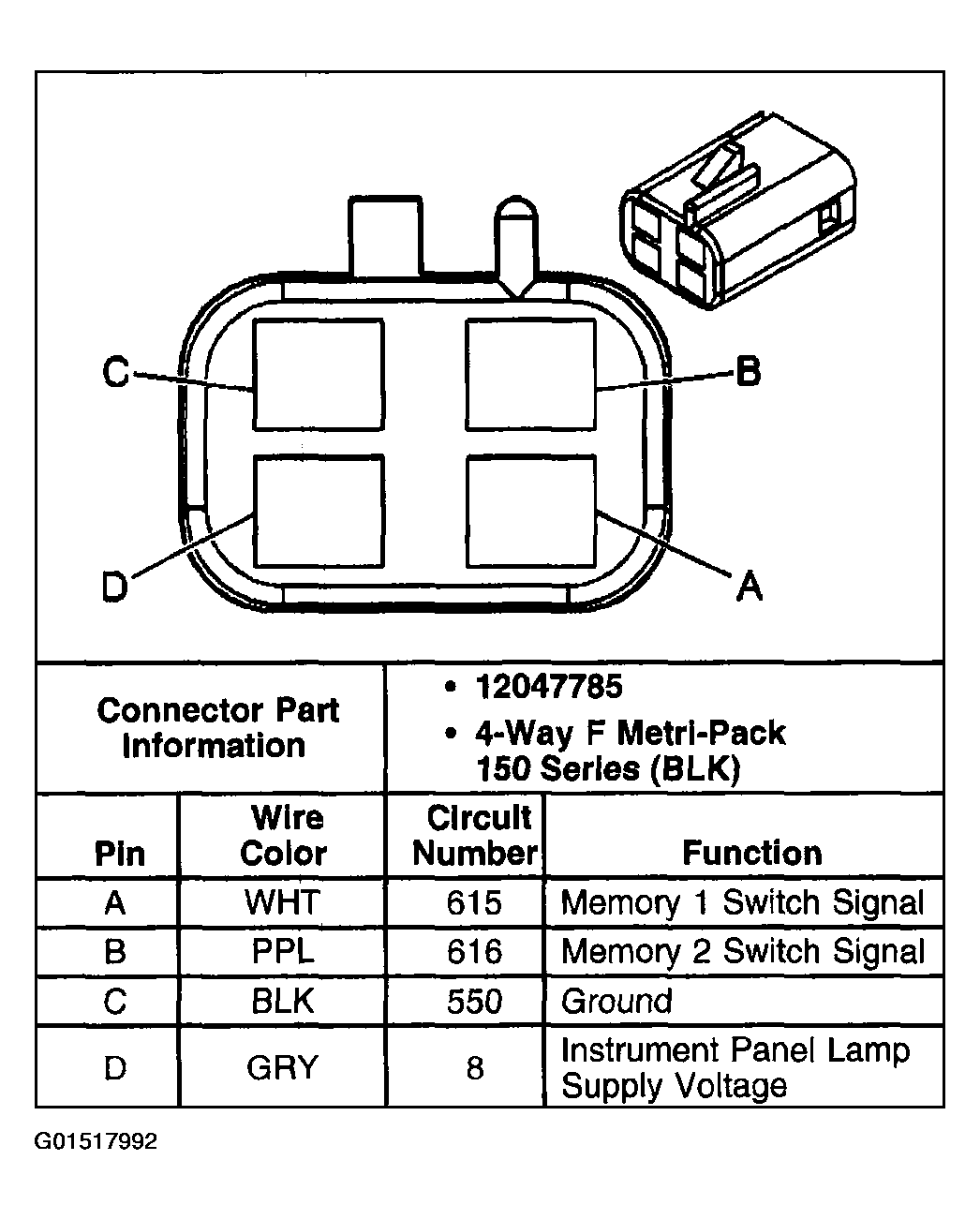

Fig 1: Memory Seat And Mirror Switch (A43)

G01517992

Courtesy of GENERAL MOTORS CORP.
