Lock Cylinder Switch Connector End View - Endgate

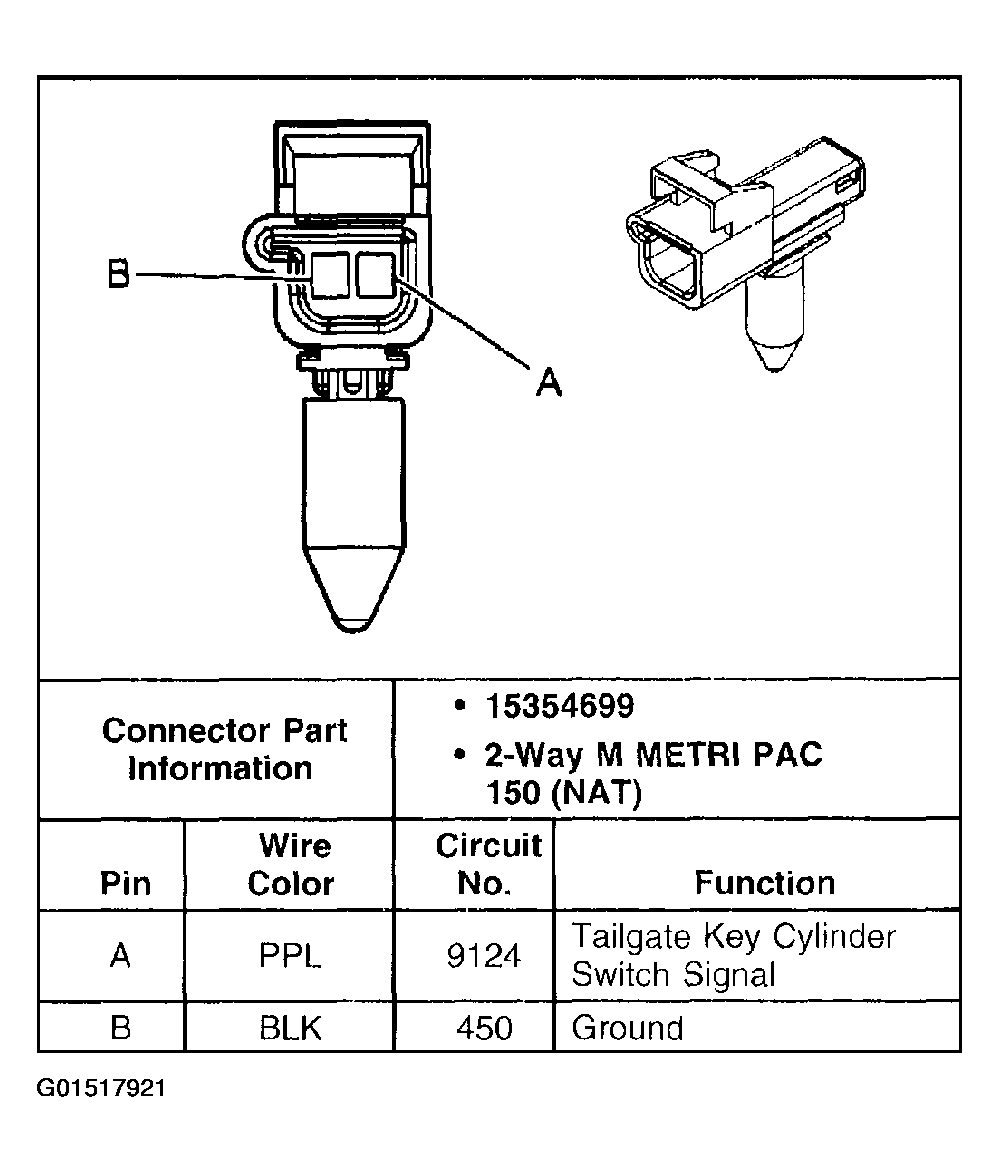

Fig 1: Lock Cylinder Switch - Endgate

G01517921

Courtesy of GENERAL MOTORS CORP.
