Left Steering Wheel Controls Connector End View

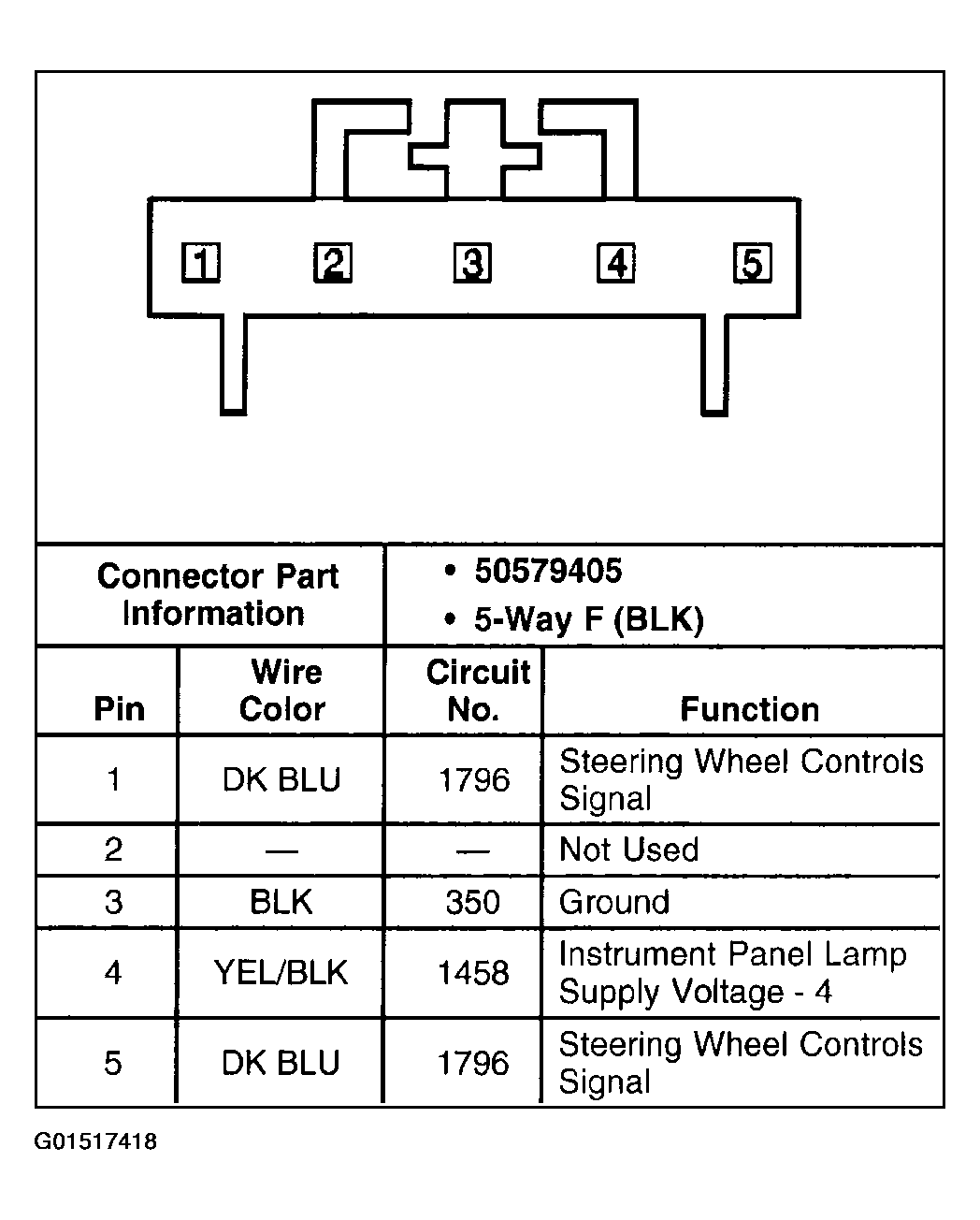

Fig 1: Left Steering Wheel Controls

G01517418

Courtesy of GENERAL MOTORS CORP.
