Left I/P Courtesy Lamp Connector End View

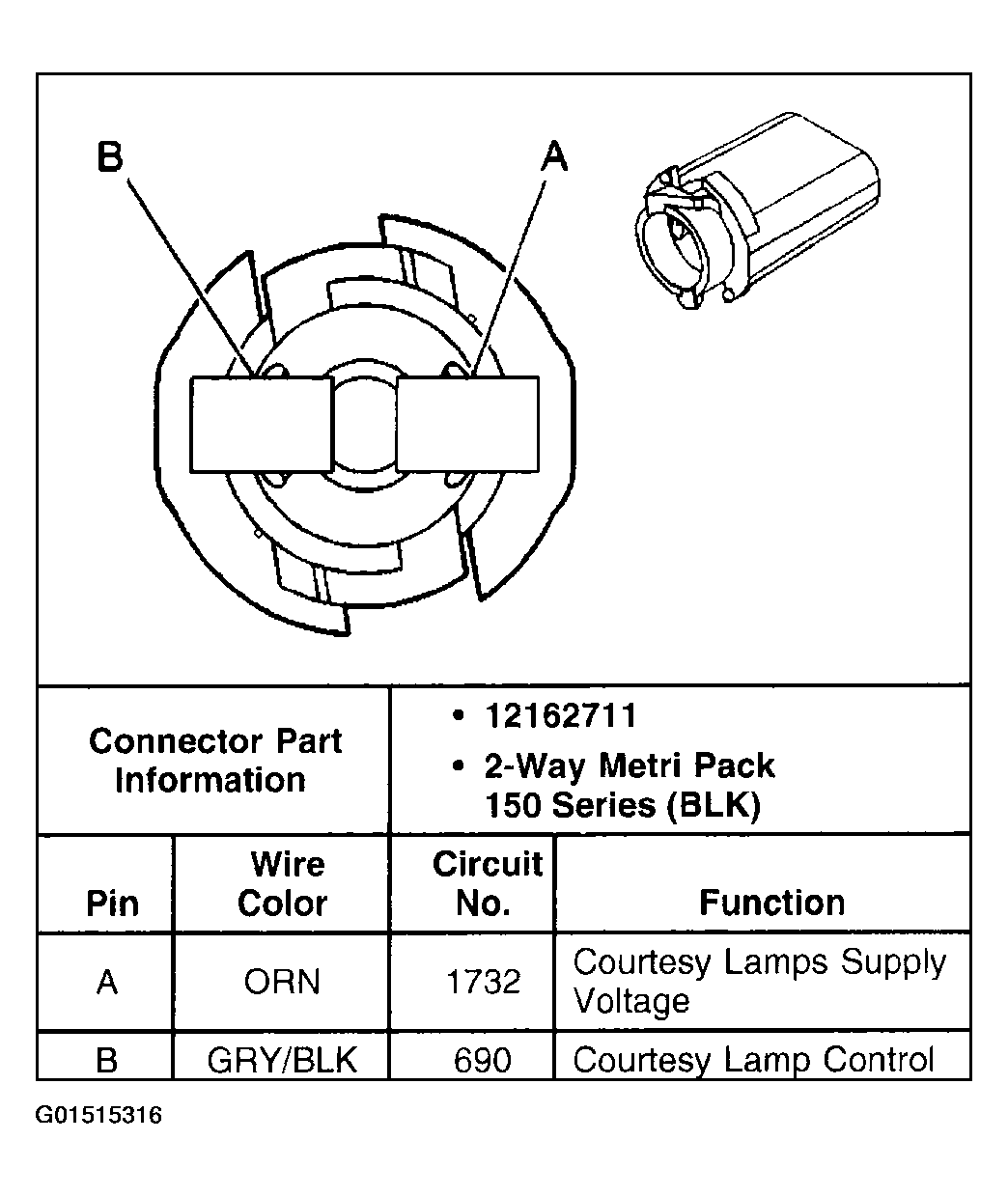

Fig 1: Left I/P Courtesy Lamp

G01515316

Courtesy of GENERAL MOTORS CORP.
