Left Fog Lamp Connector End View
Left Fog Lamp Connector End View

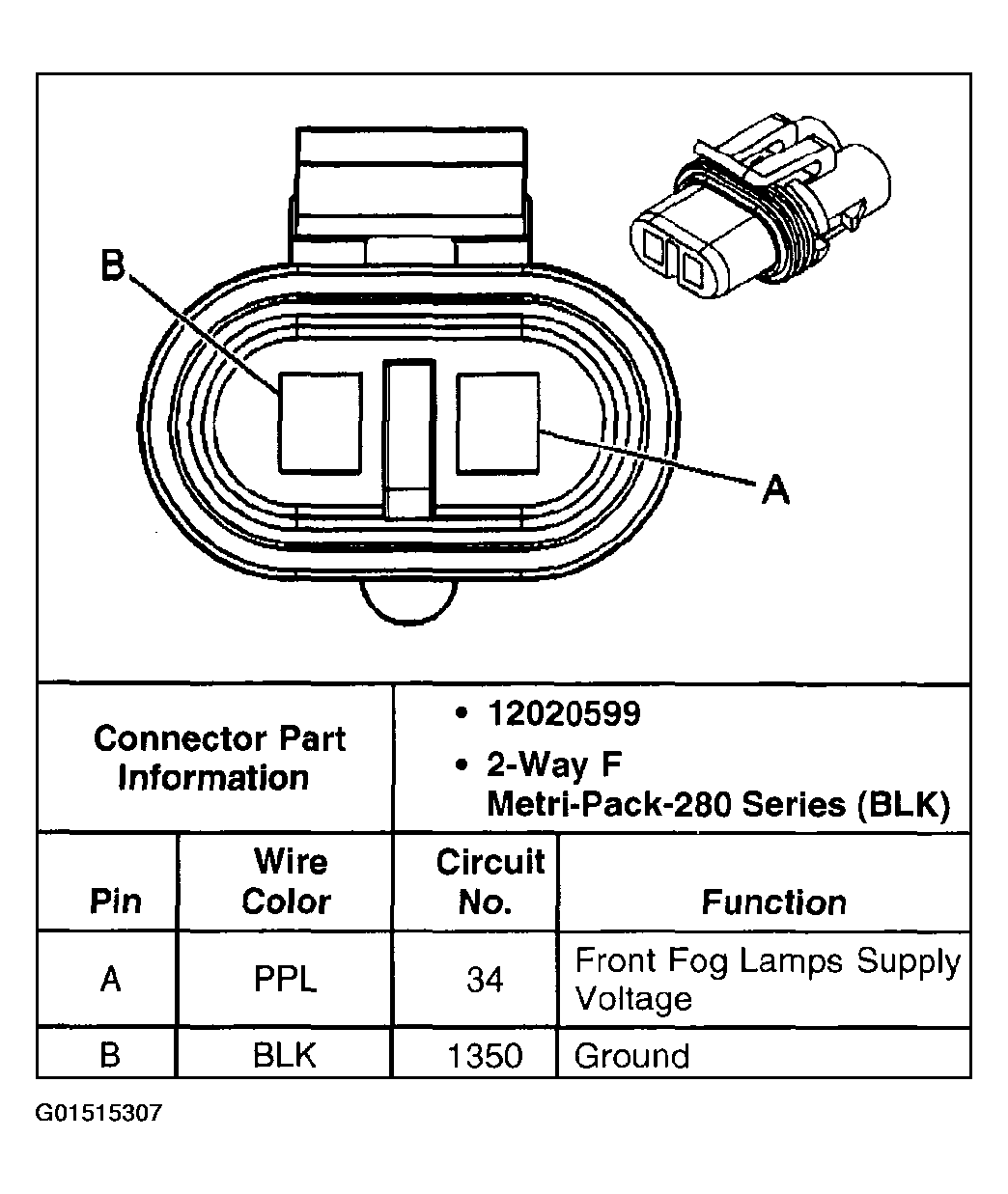

Fig 1: Left Fog Lamp
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
