LF Door Tweeter Connector End View
LF Door Tweeter Connector End View

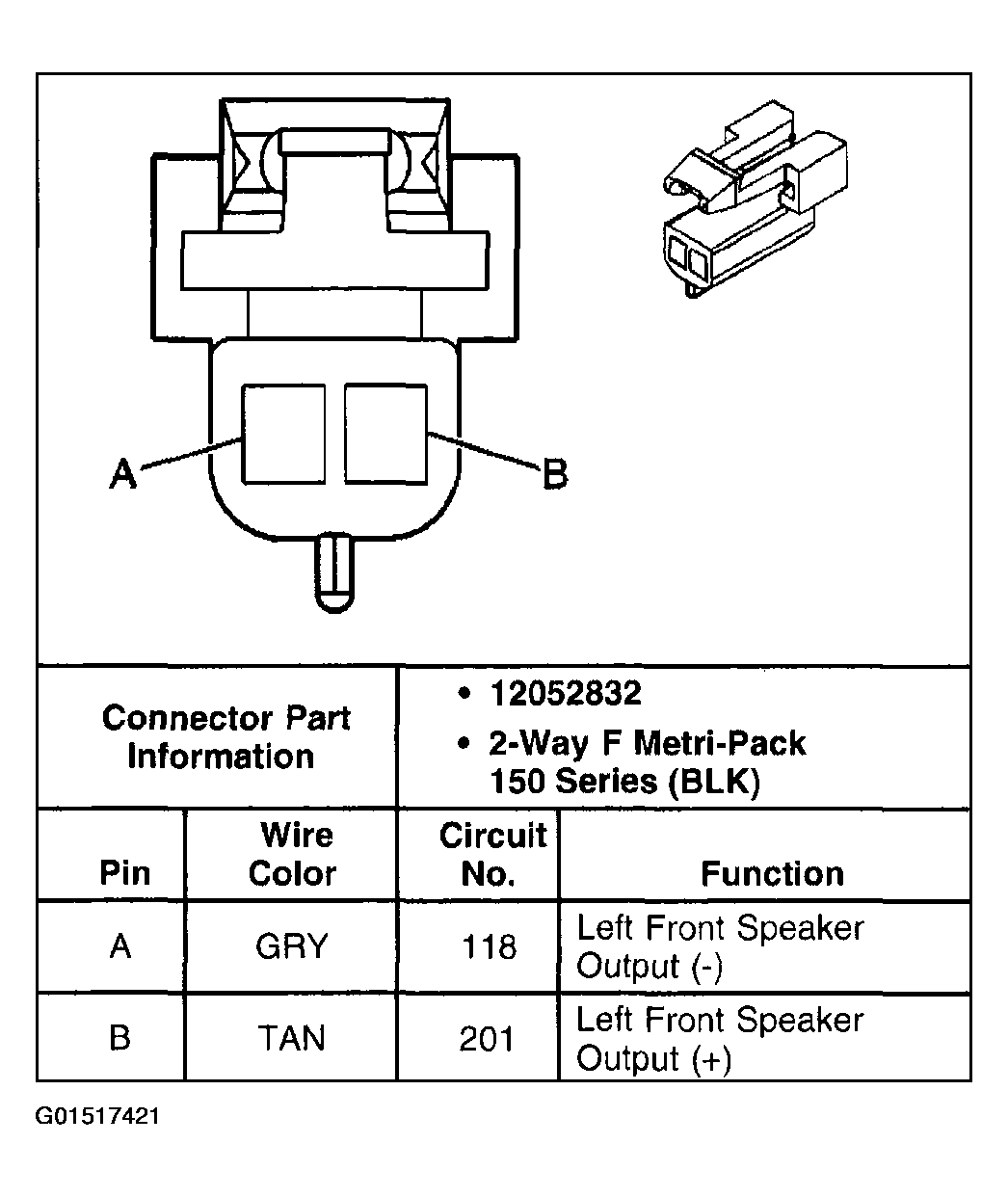

Fig 1: LF Door Tweeter
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
