In-Line Connector End View C408

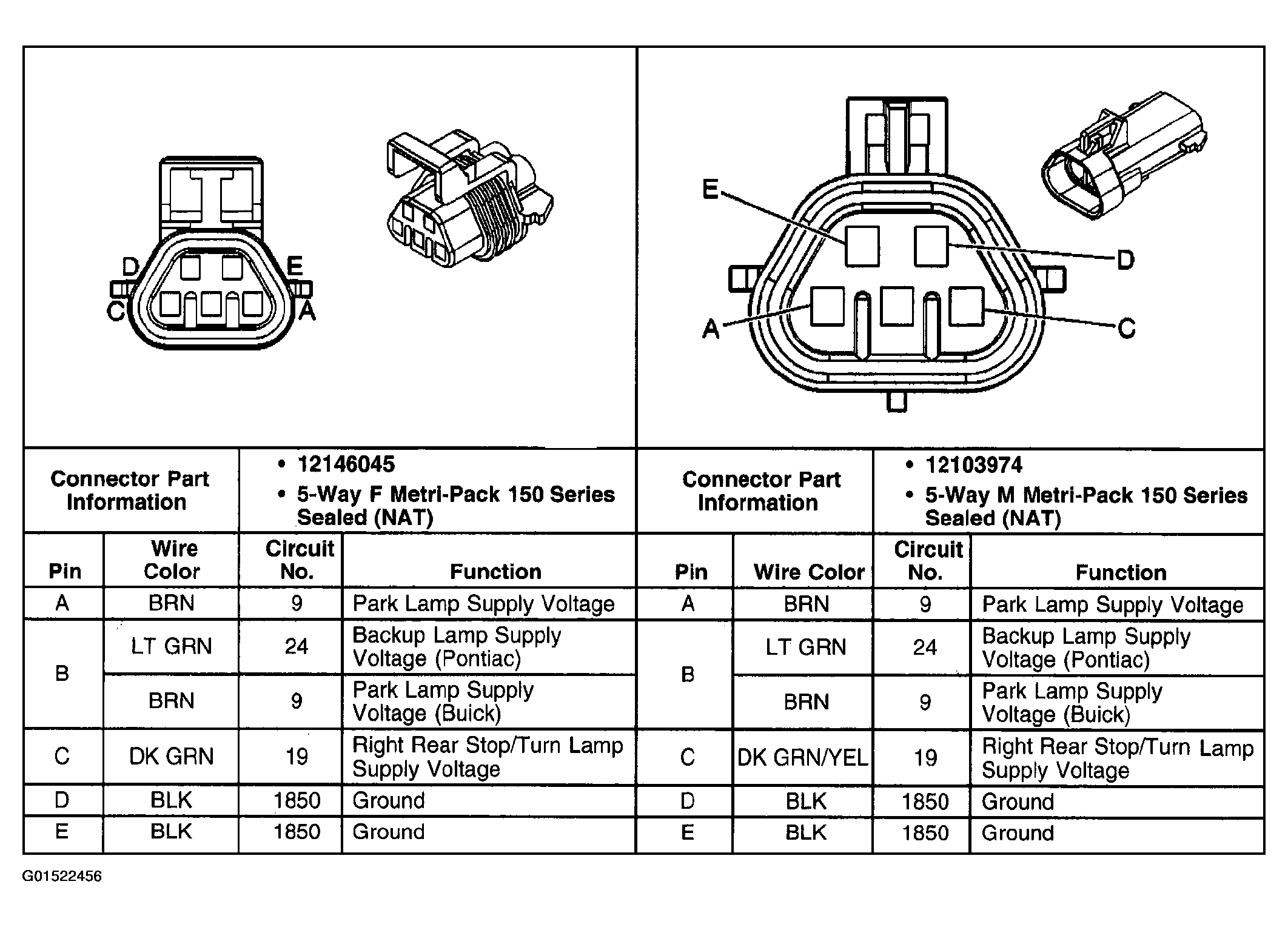

Fig 1: In-Line Connector C408

G01522456

Courtesy of GENERAL MOTORS CORP.
