In-Line Connector End View C316

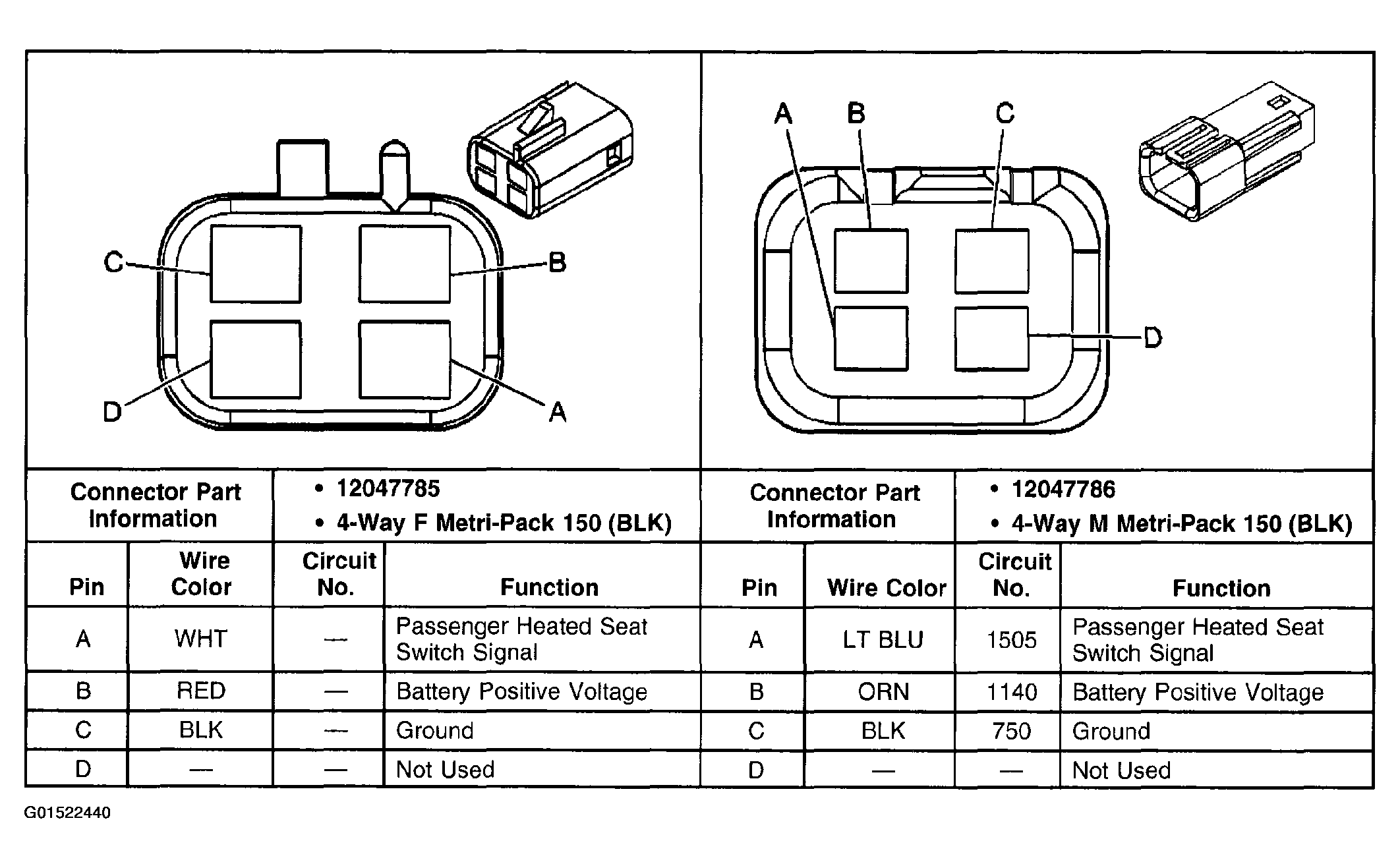

Fig 1: In-Line Connector C316

G01522440

Courtesy of GENERAL MOTORS CORP.
