In-Line Connector End View C309

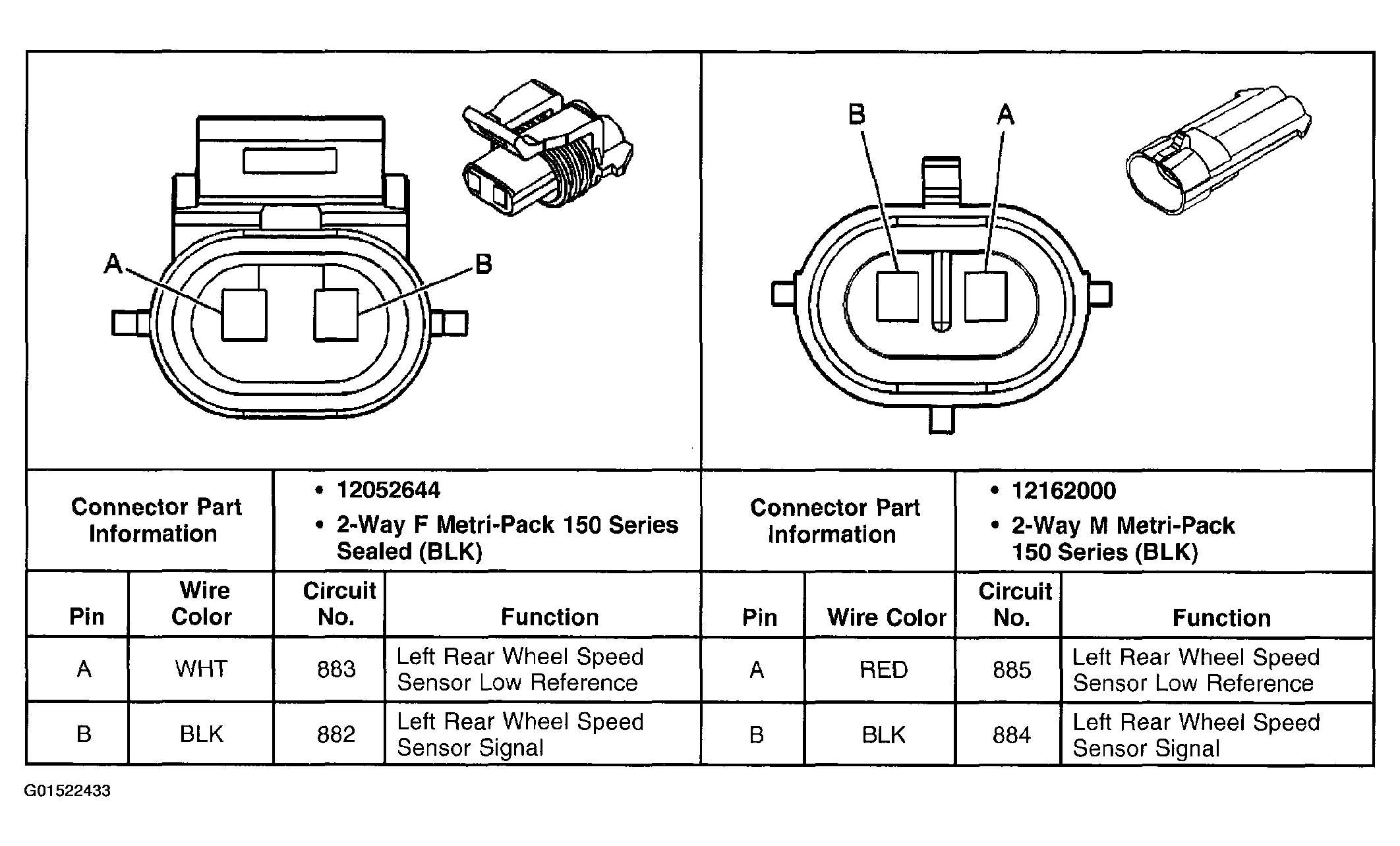

Fig 1: In-Line Connector C309

G01522433

Courtesy of GENERAL MOTORS CORP.
