Home >> Pontiac >> 2003 >> Aztek AWD >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Connector End Views >> Connector End Views >> In-Line Connector End View C308

In-Line Connector End View C308

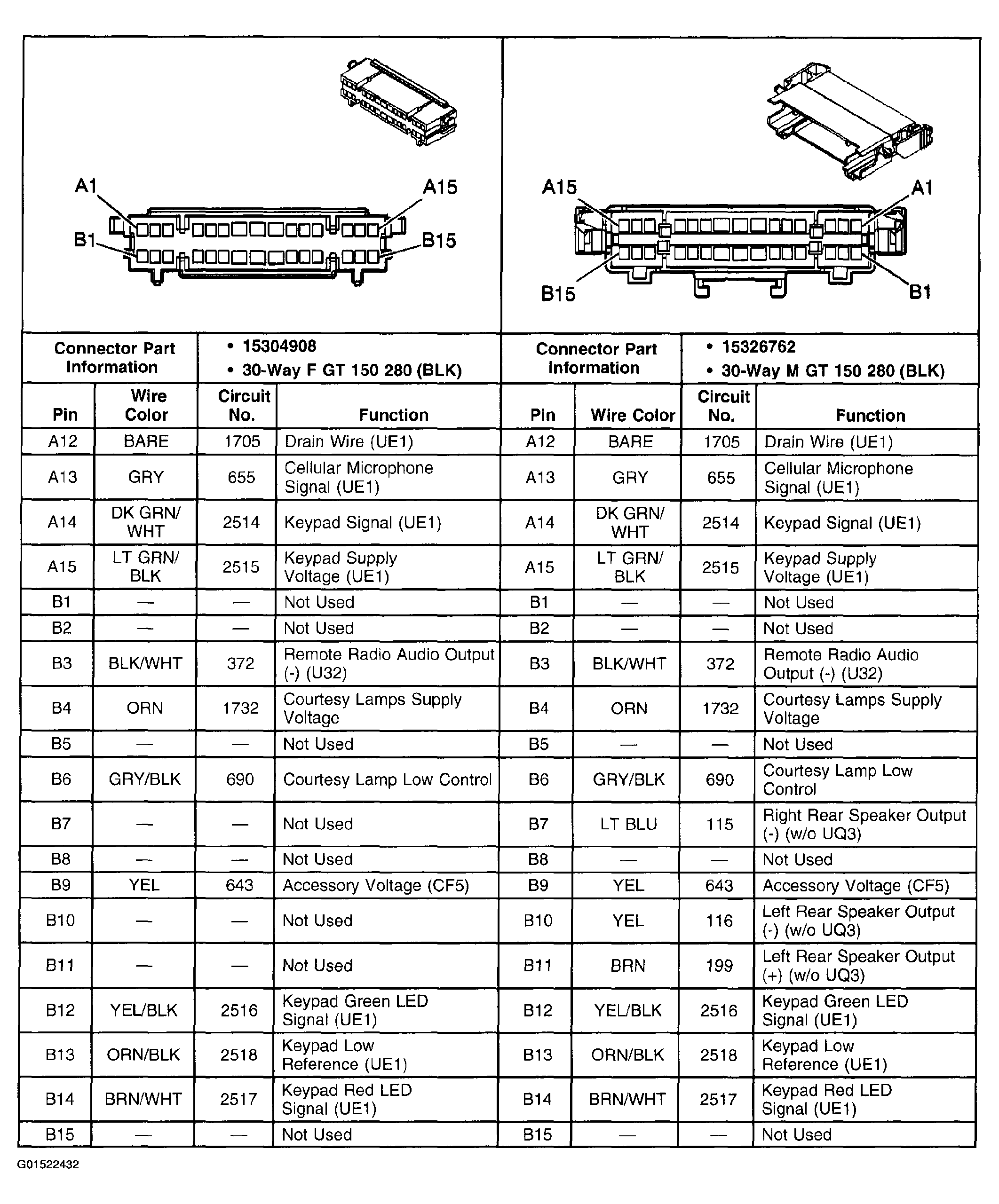

Fig 1: In-Line Connector C308

G01522432

Courtesy of GENERAL MOTORS CORP.
