In-Line Connector End View C306

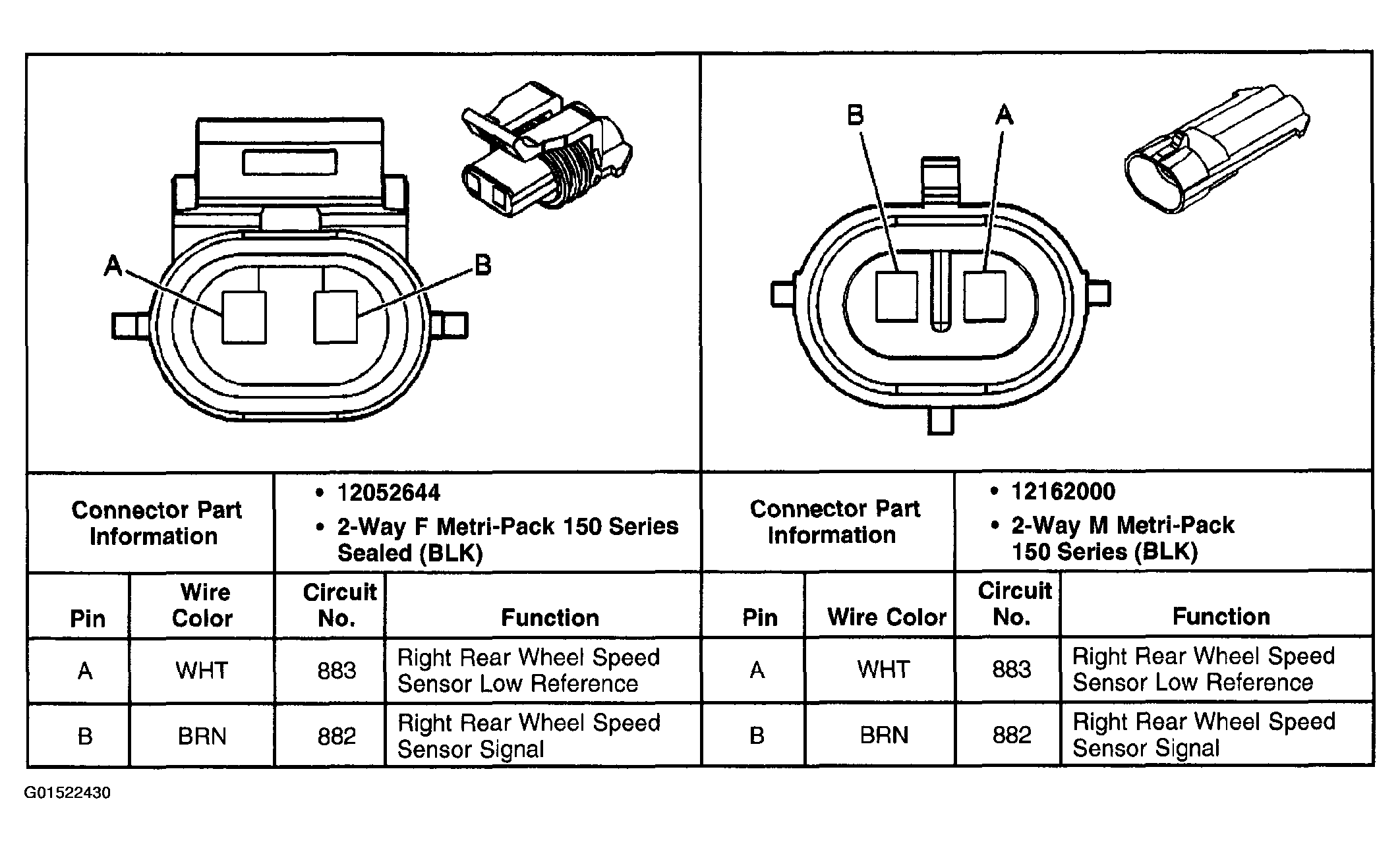

Fig 1: In-Line Connector C306

G01522430

Courtesy of GENERAL MOTORS CORP.
