In-Line Connector End View C303

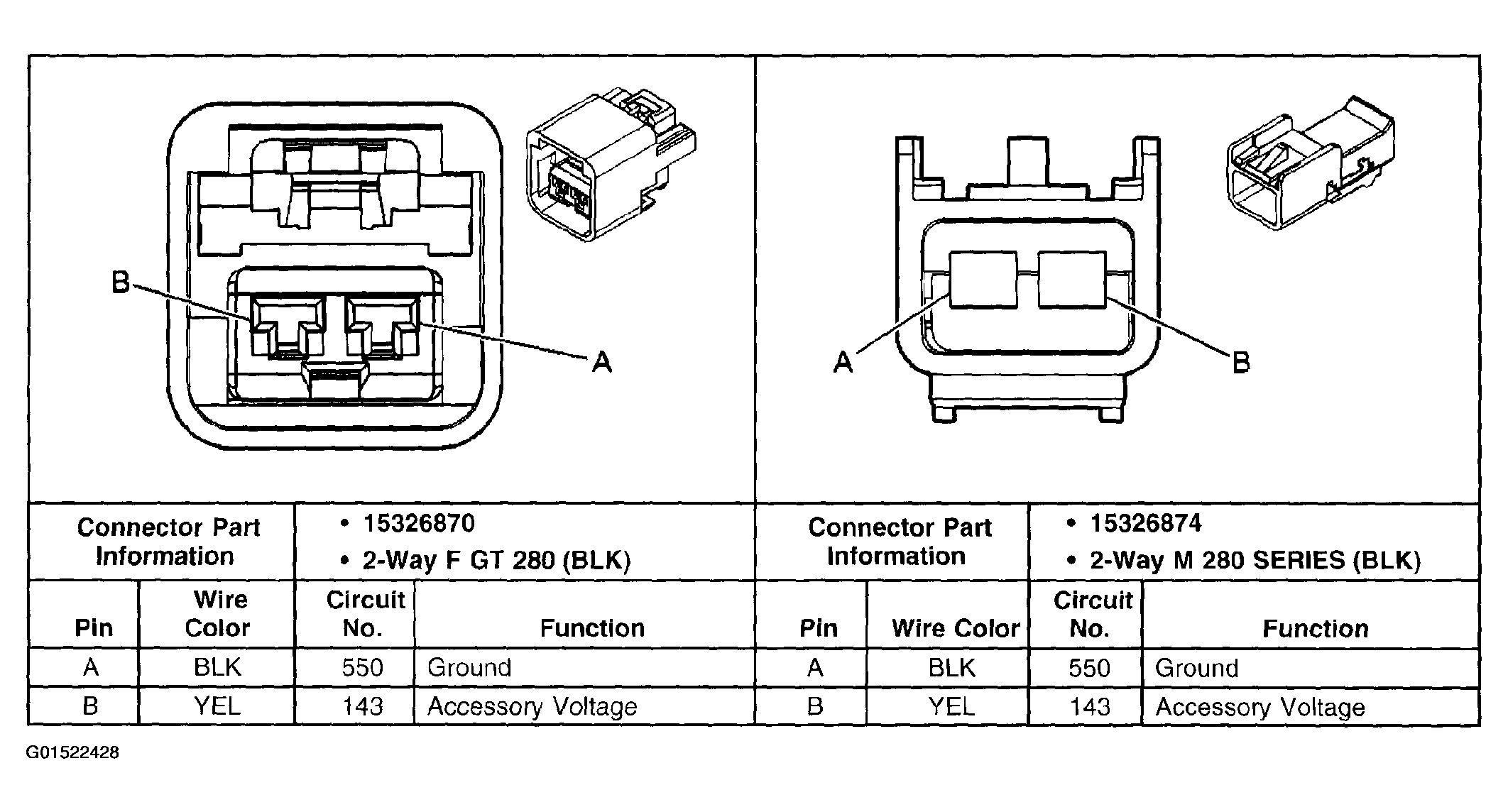

Fig 1: In-Line Connector C303

G01522428

Courtesy of GENERAL MOTORS CORP.
