In-Line Connector End View C105

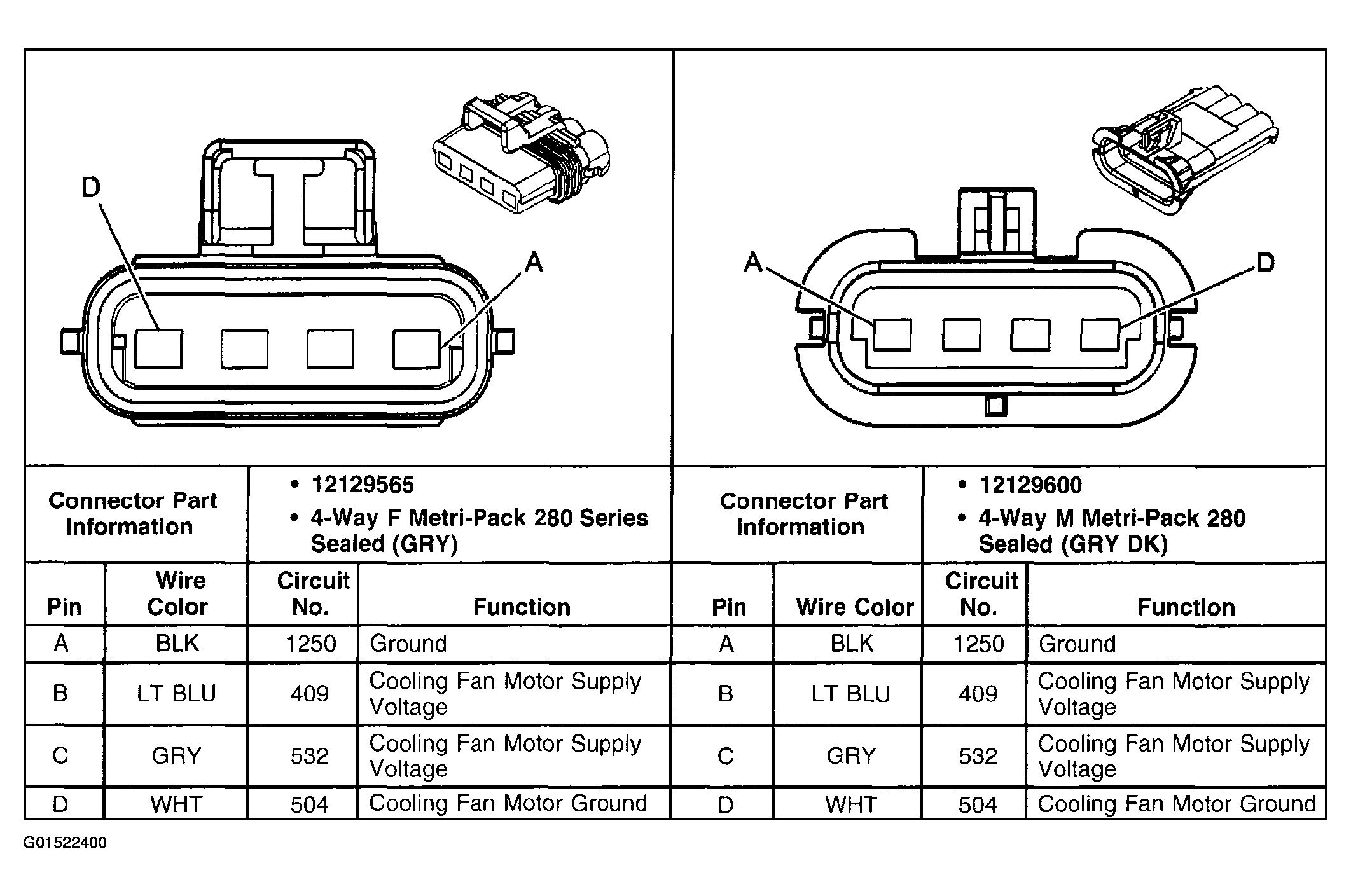

Fig 1: In-Line Connector C105

G01522400

Courtesy of GENERAL MOTORS CORP.
