In-Line Connector End View C103

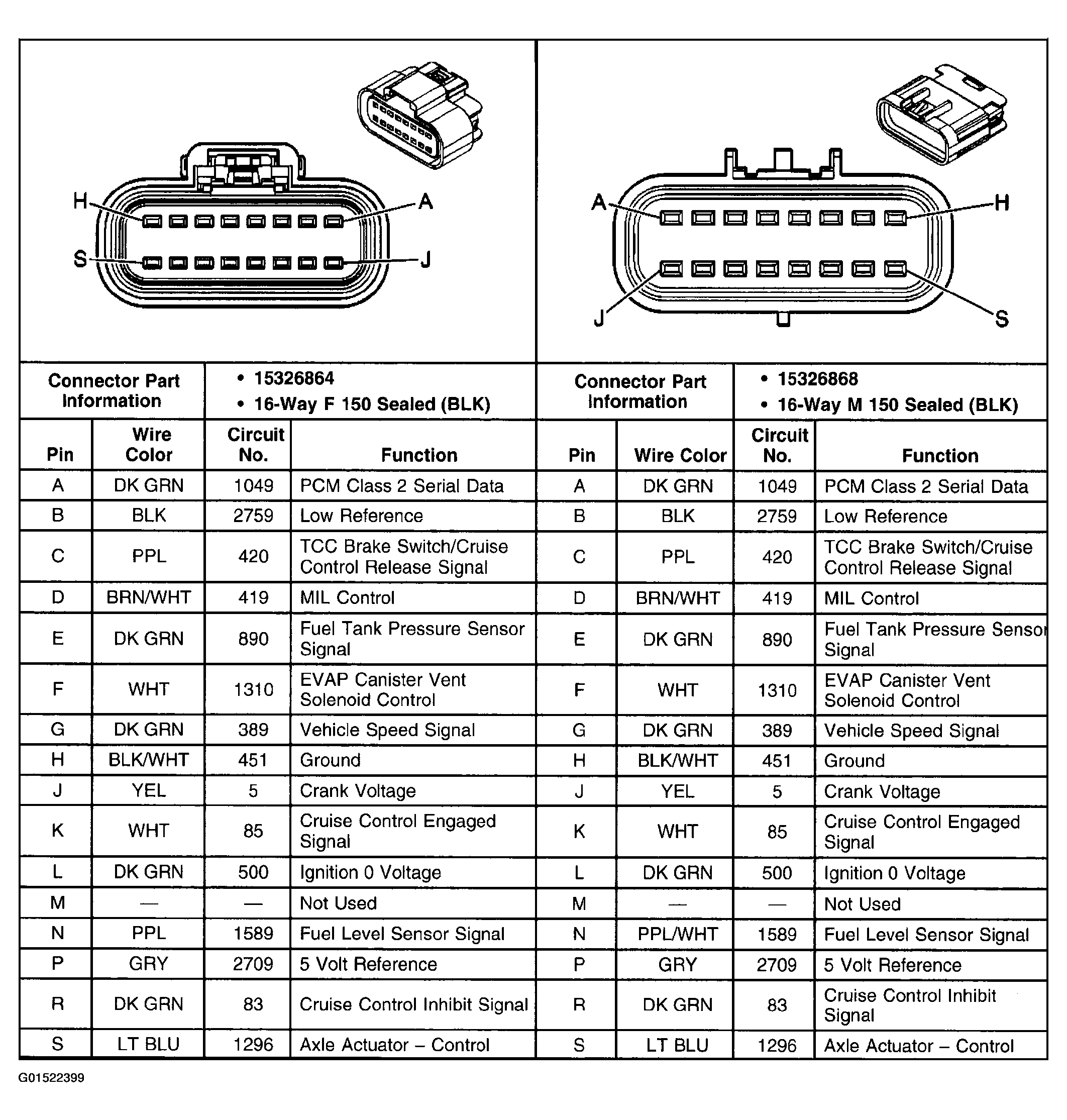

Fig 1: In-Line Connector C103

G01522399

Courtesy of GENERAL MOTORS CORP.
