In-Line Connector End View C102

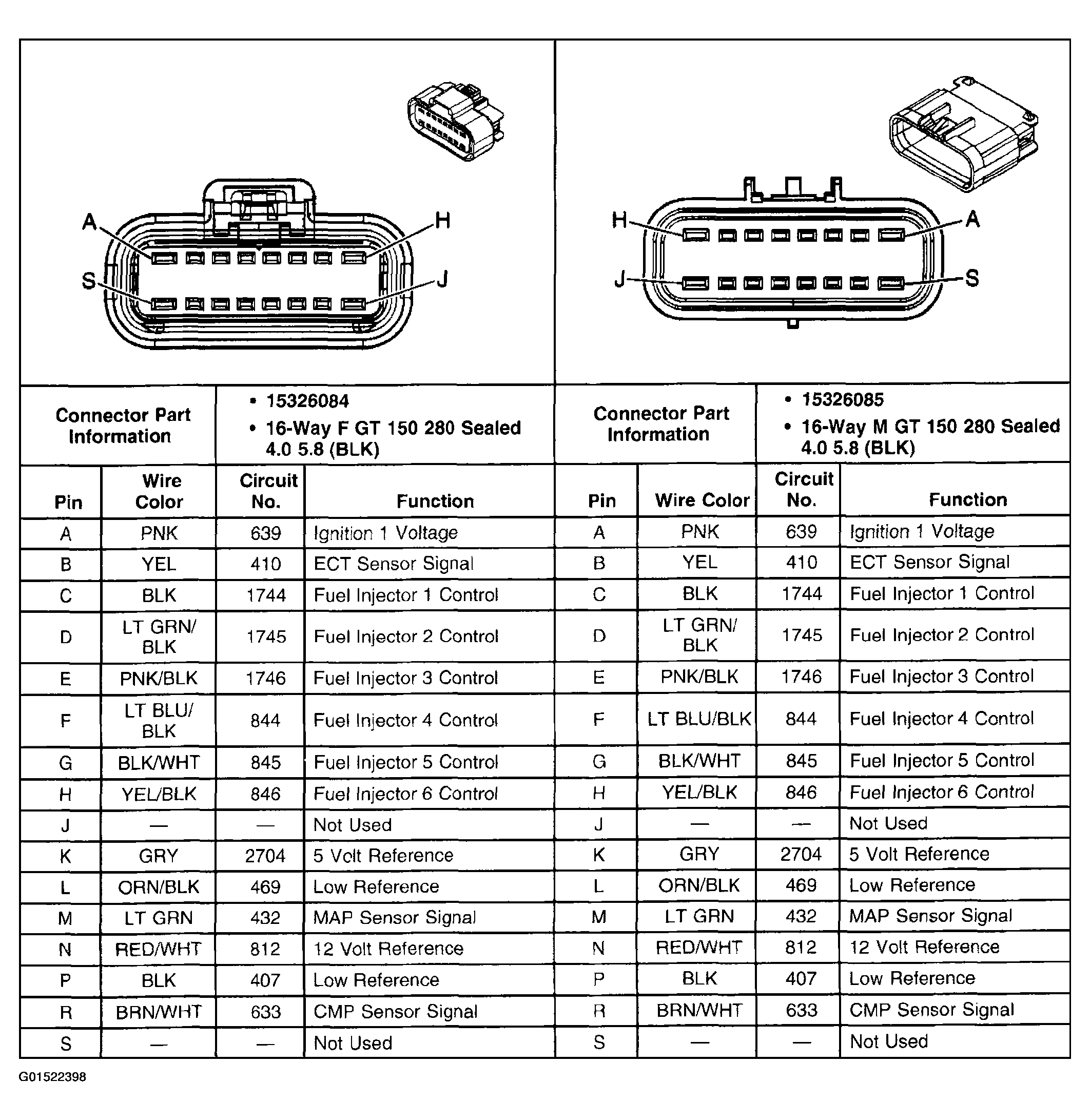

Fig 1: In-Line Connector C102

G01522398

Courtesy of GENERAL MOTORS CORP.
