Ignition Key Alarm Switch Connector End View

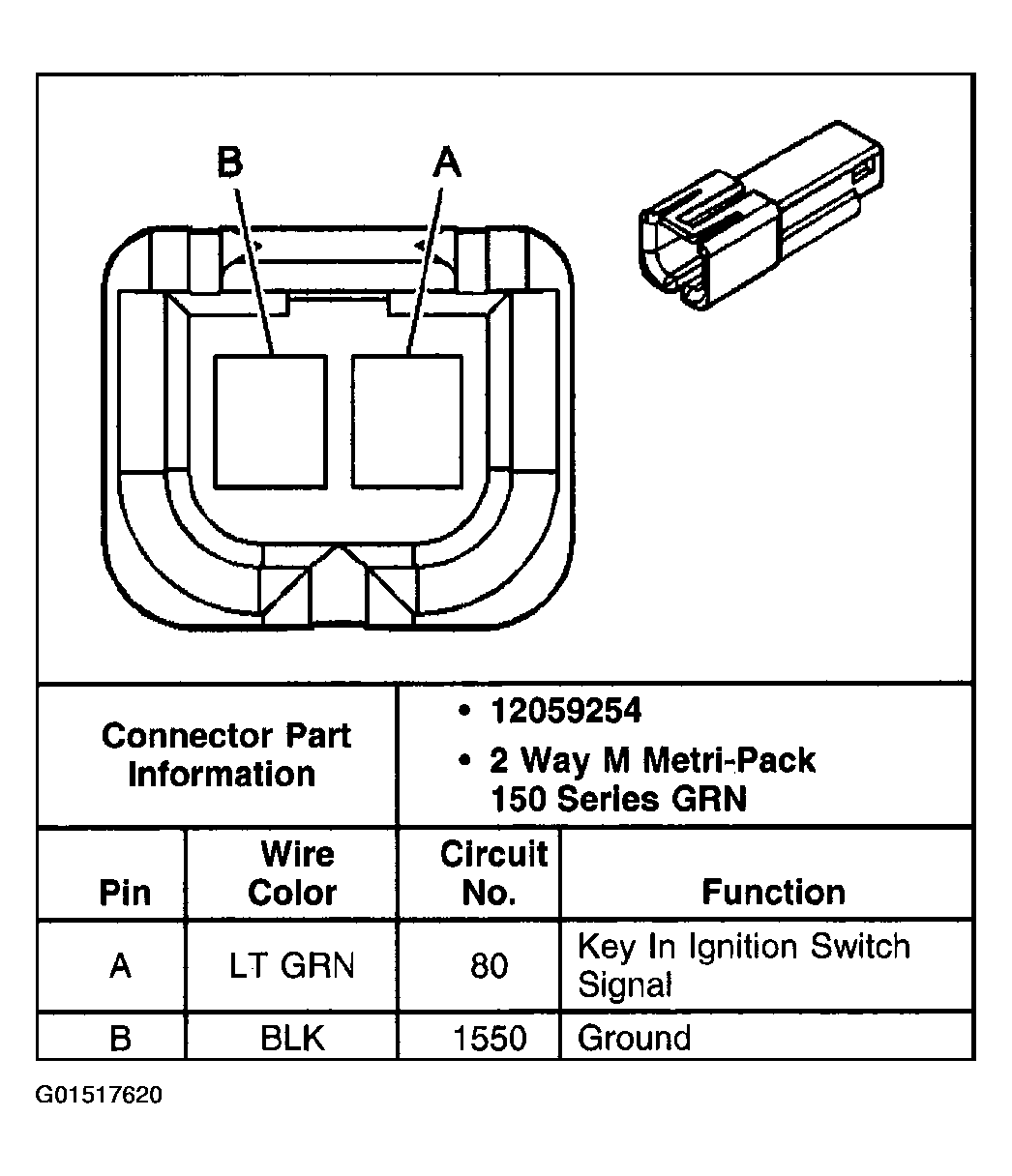

Fig 1: Ignition Key Alarm Switch

G01517620

Courtesy of GENERAL MOTORS CORP.
