I/P Compartment Lamp Connector End View

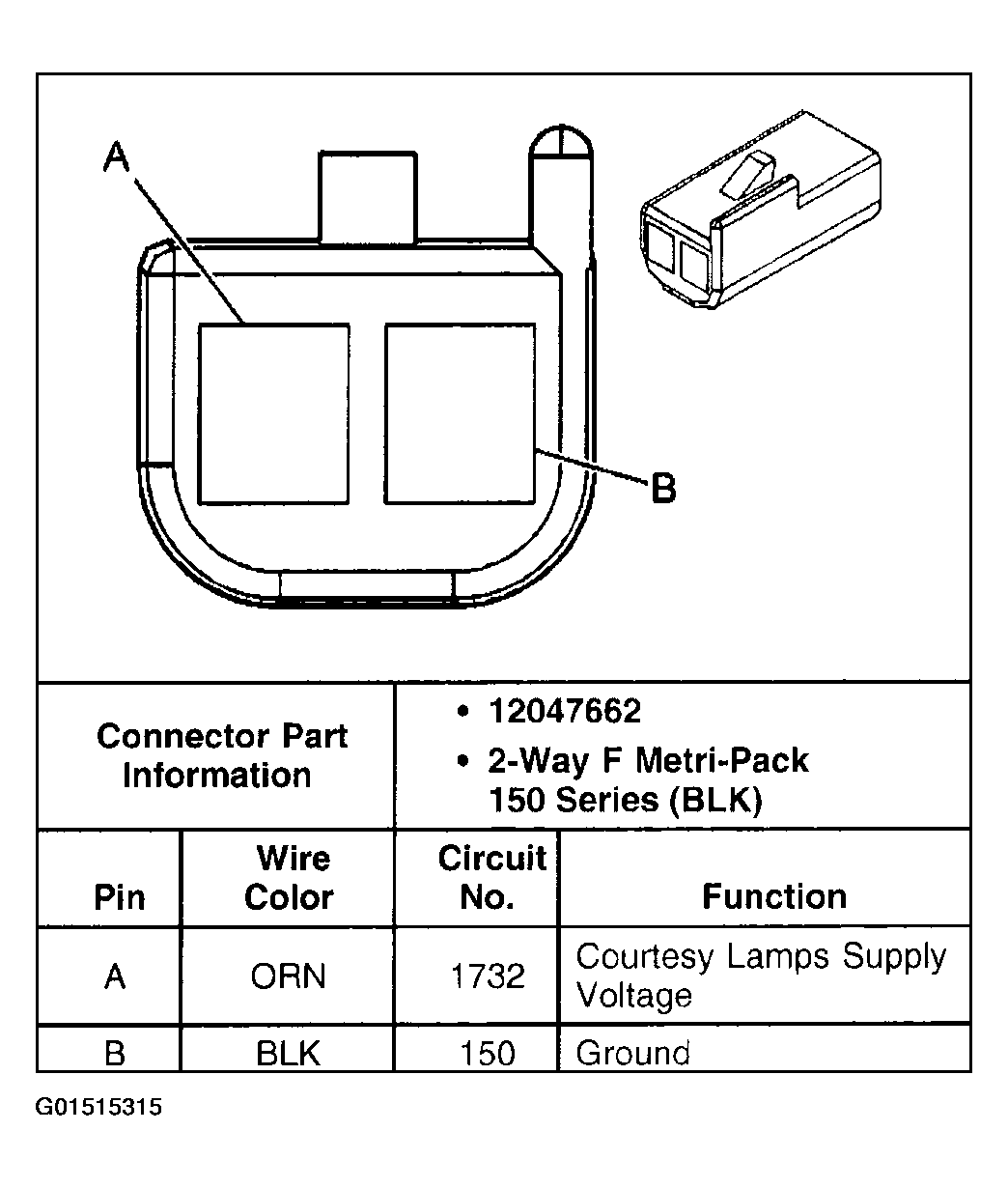

Fig 1: I/P Compartment Lamp

G01515315

Courtesy of GENERAL MOTORS CORP.
