Digital Radio Receiver Connector End View

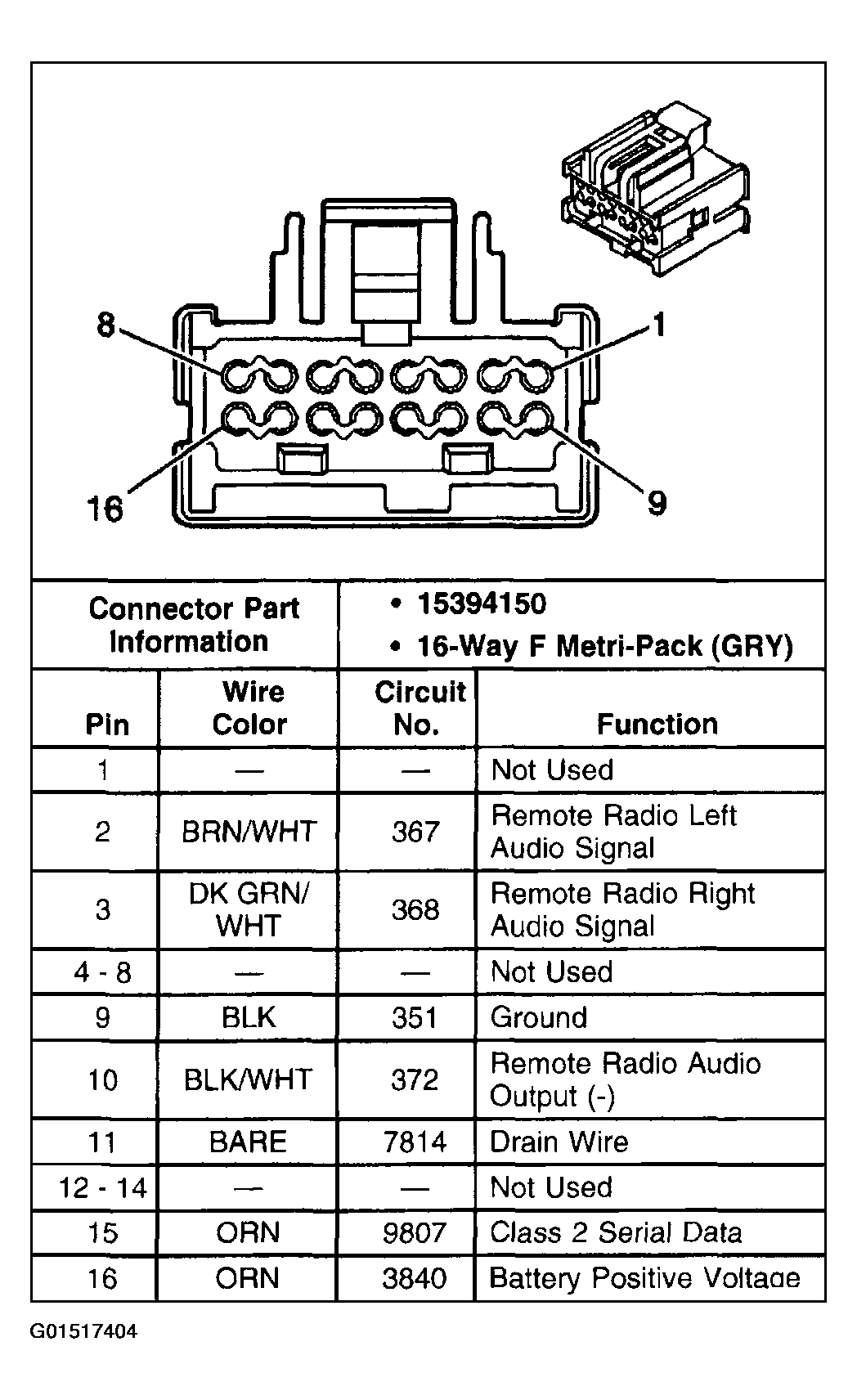

Fig 1: Digital Radio Receiver (U2K)

G01517404

Courtesy of GENERAL MOTORS CORP.
