Auxiliary Power Outlet Front Connector End View

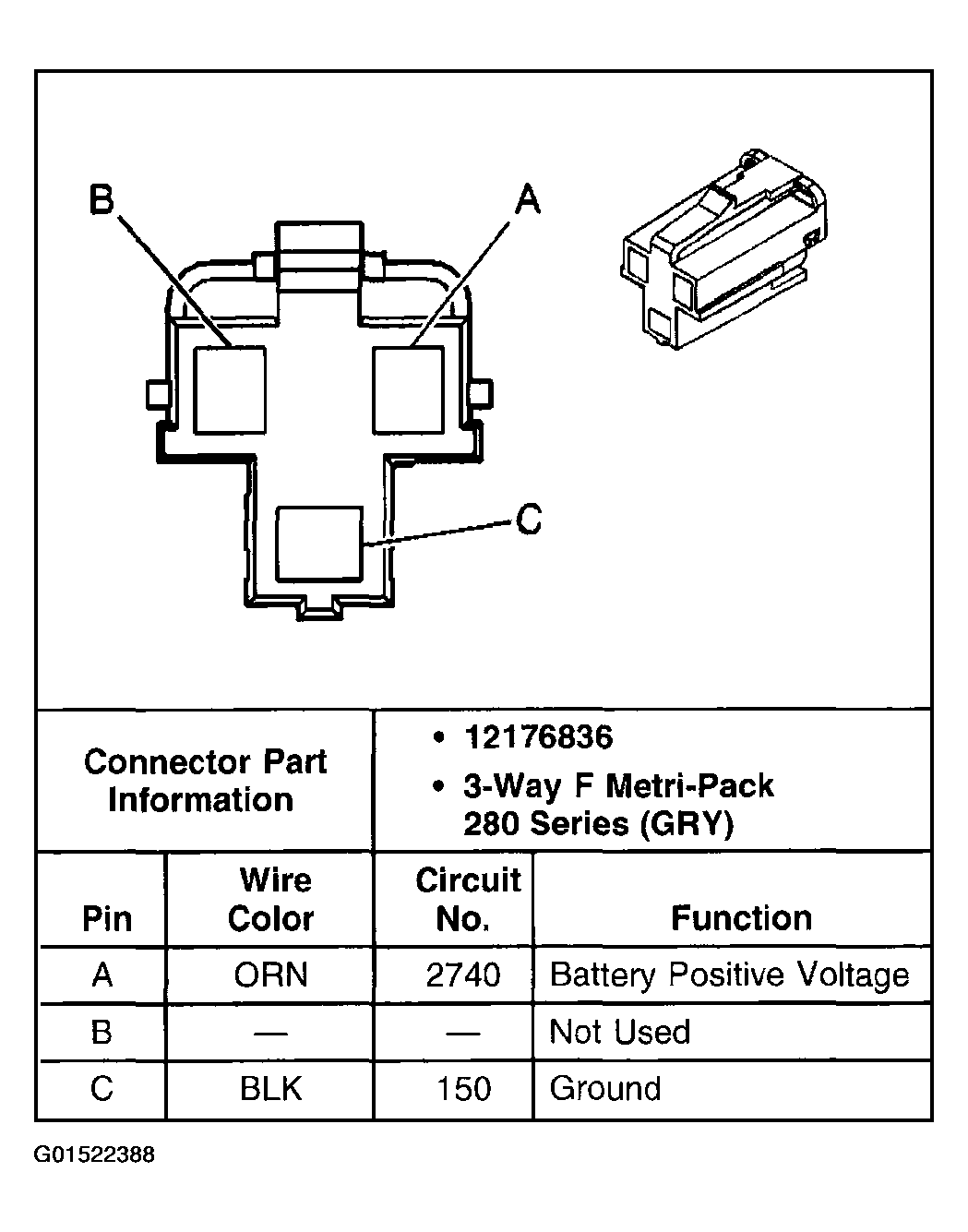

Fig 1: Auxiliary Power Outlet Front

G01522388

Courtesy of GENERAL MOTORS CORP.
