Auxiliary Power Outlet Console Connector End View

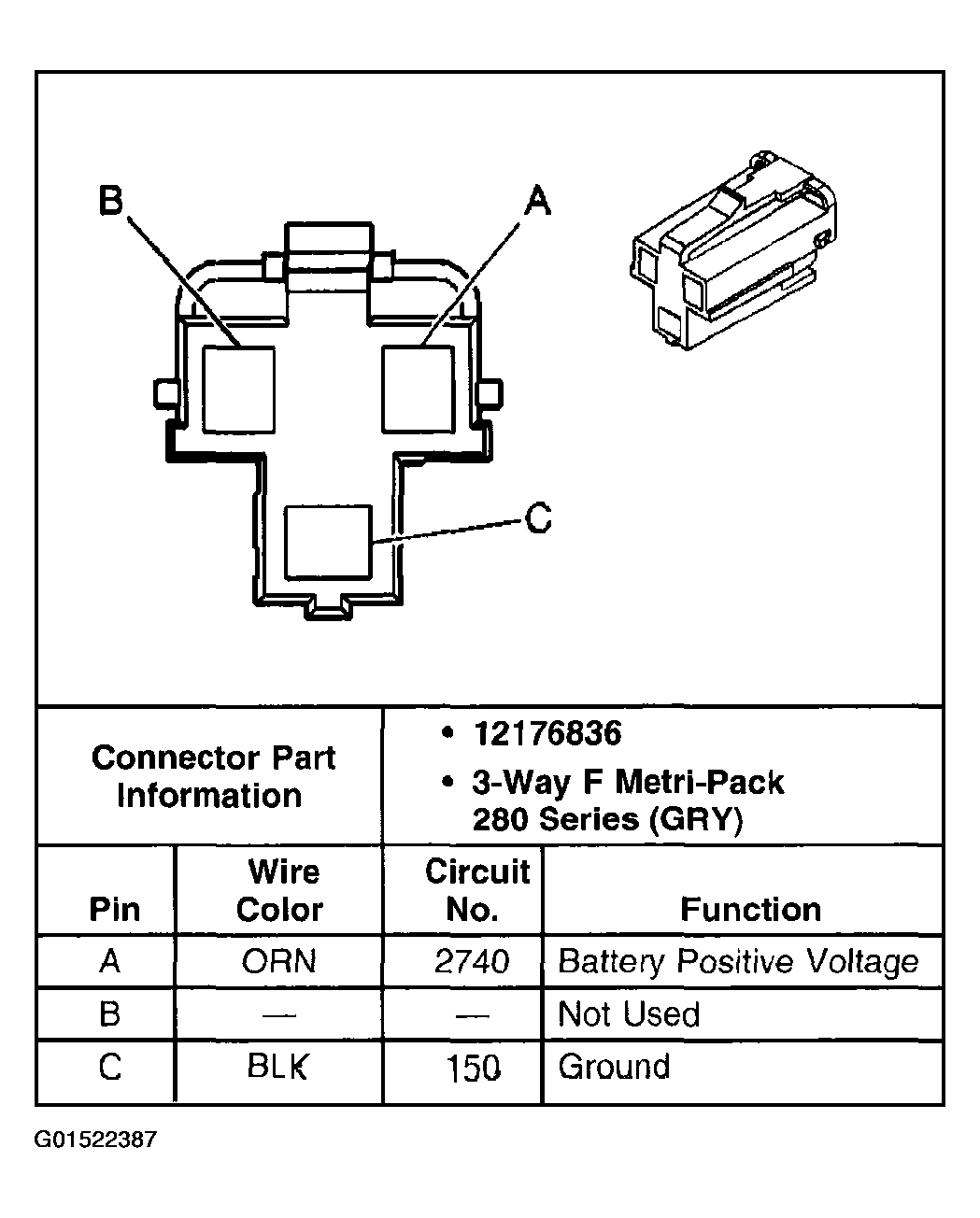

Fig 1: Auxiliary Power Outlet Console

G01522387

Courtesy of GENERAL MOTORS CORP.
