Auxiliary Drop Connector End View
Auxiliary Drop Connector End View

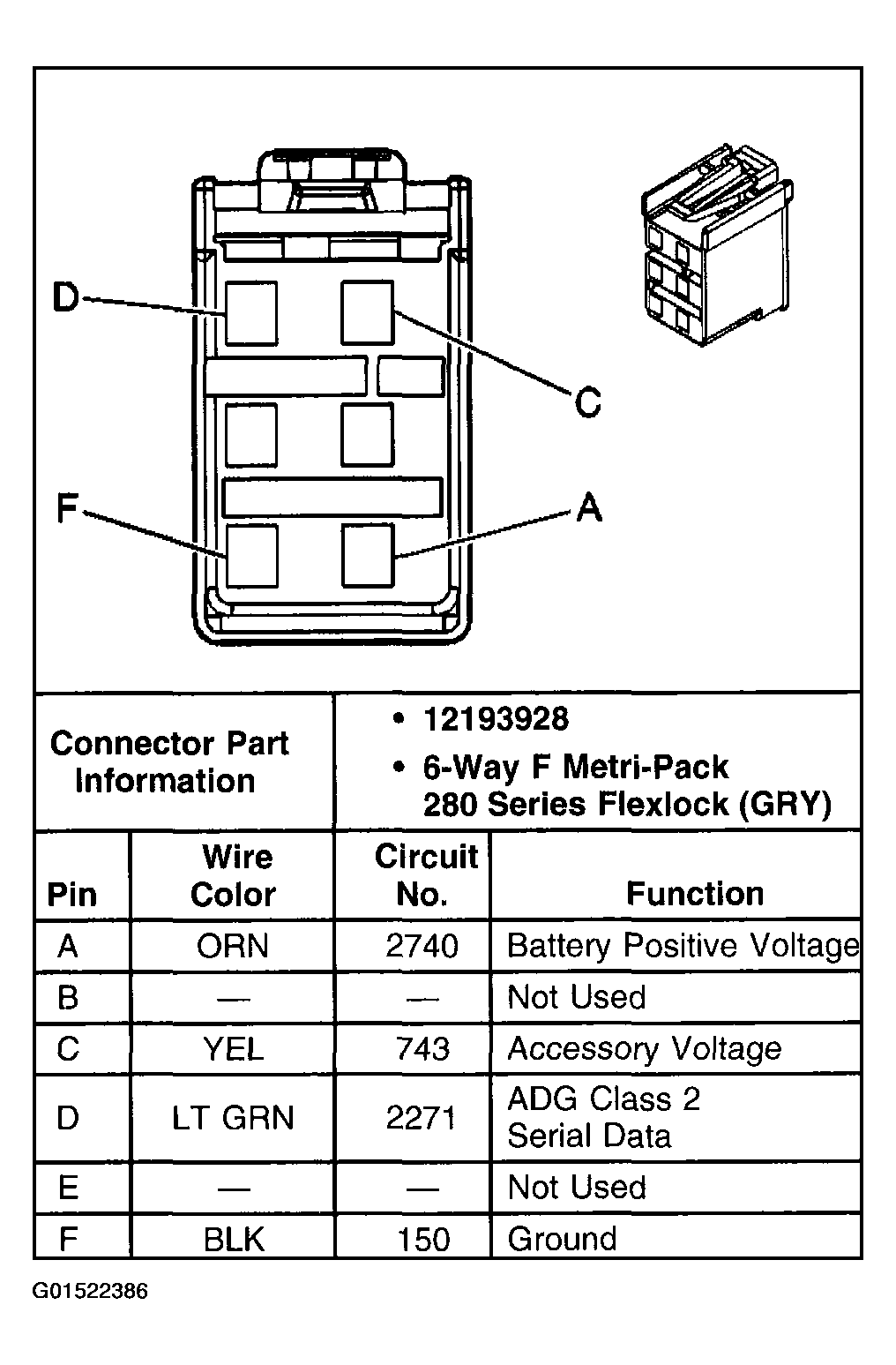

Fig 1: Auxiliary Drop Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
