Auto Level Control (ALC) Air Compressor Connector End View

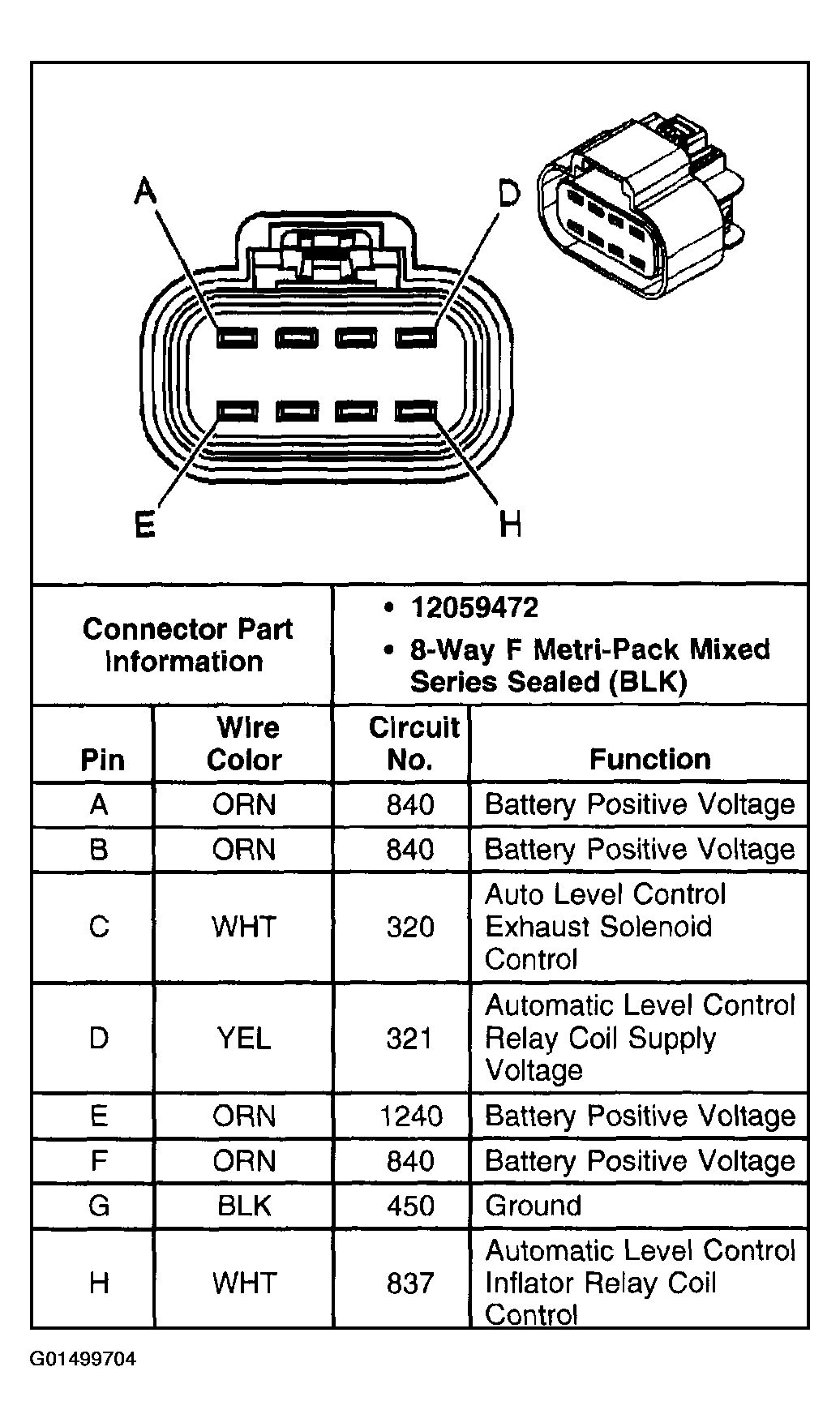

Fig 1: Auto Level Control (ALC) Air Compressor

G01499704

Courtesy of GENERAL MOTORS CORP.
