Ambient Air Temperature Sensor Connector End View

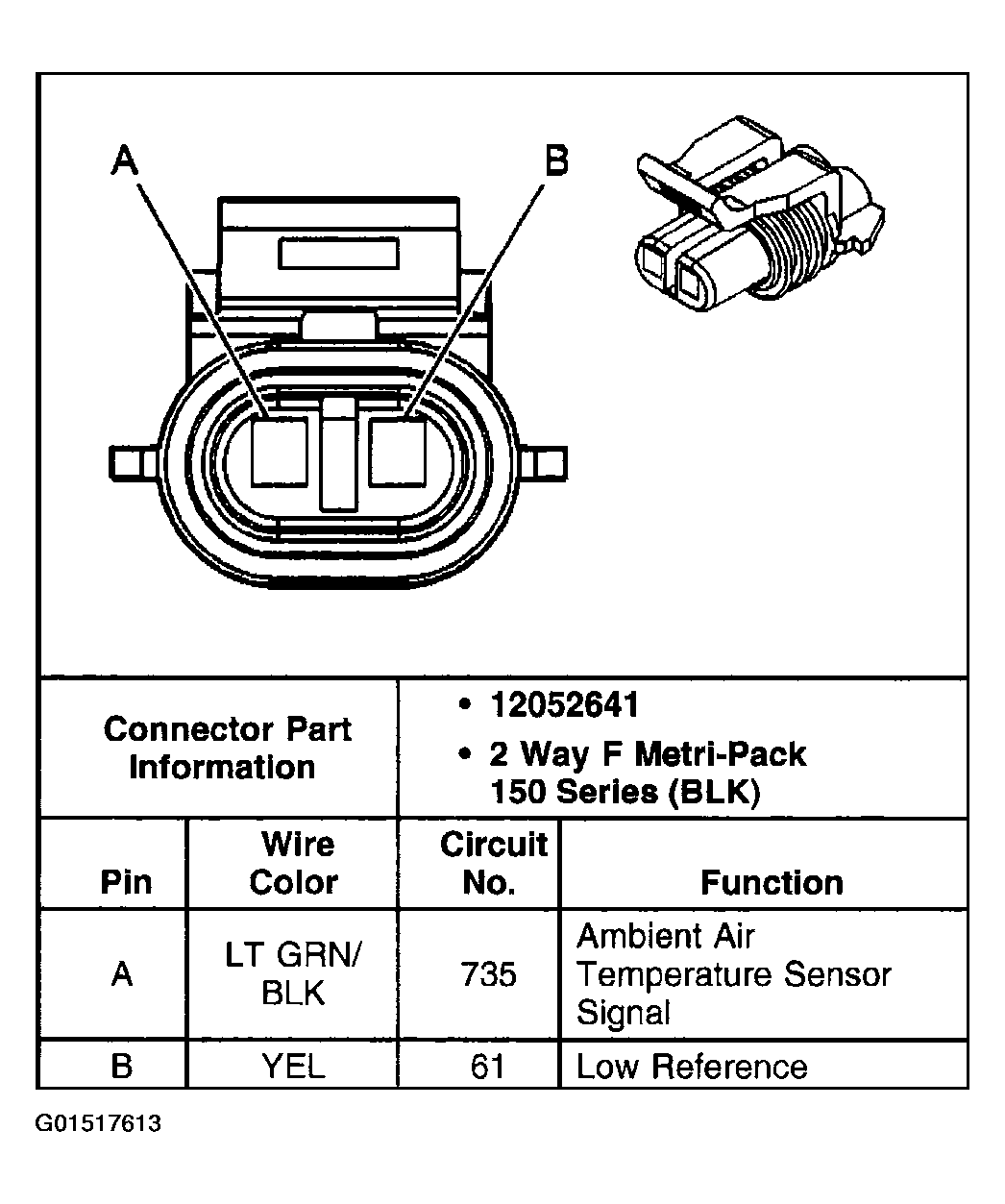

Fig 1: Ambient Air Temperature Sensor (UH9/CJ2)

G01517613

Courtesy of GENERAL MOTORS CORP.
