Air Inflator Switch Connector End View

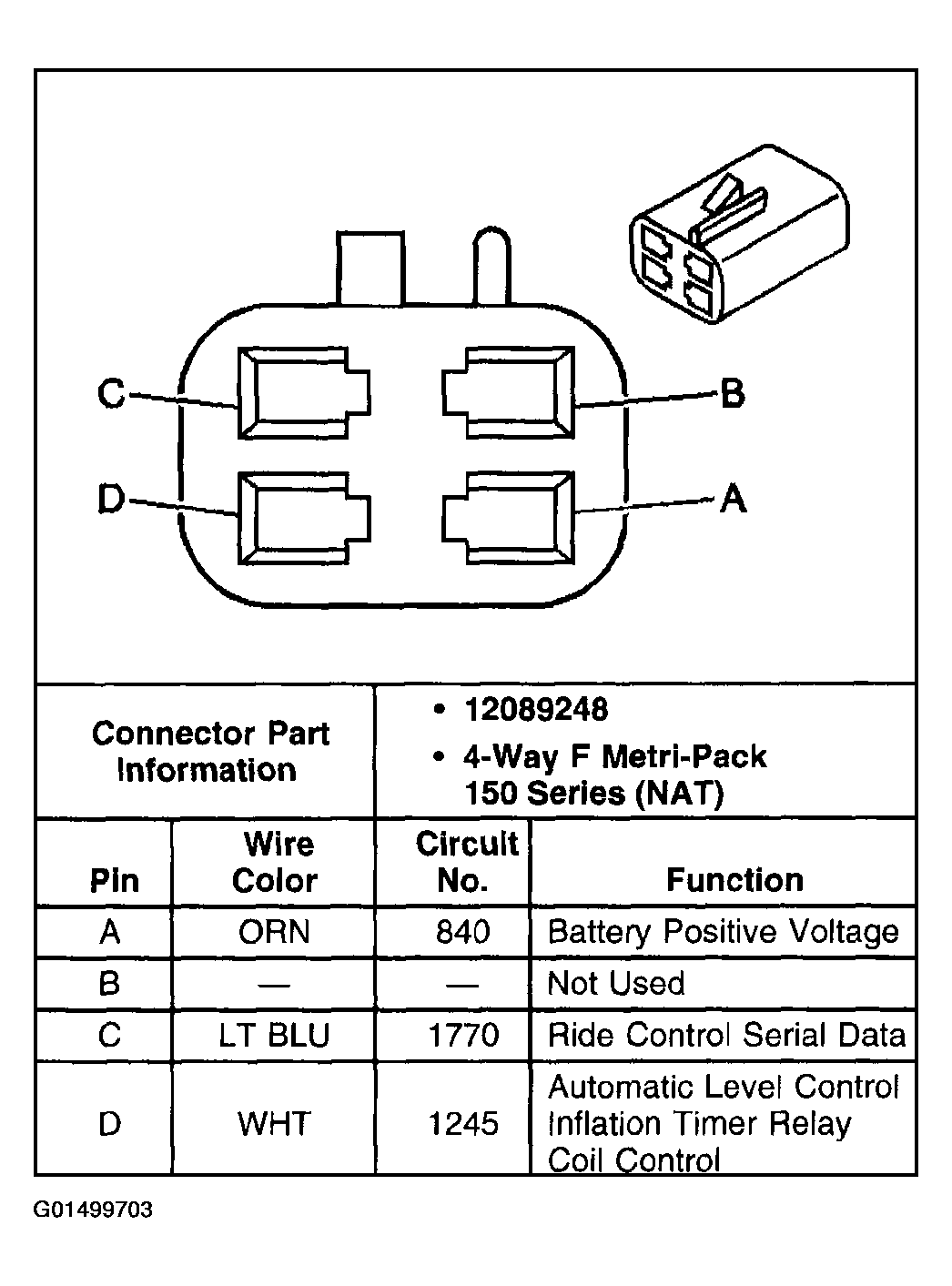

Fig 1: Air Inflator Switch

G01499703

Courtesy of GENERAL MOTORS CORP.
