A/C Refrigerant Pressure Sensor Connector End View

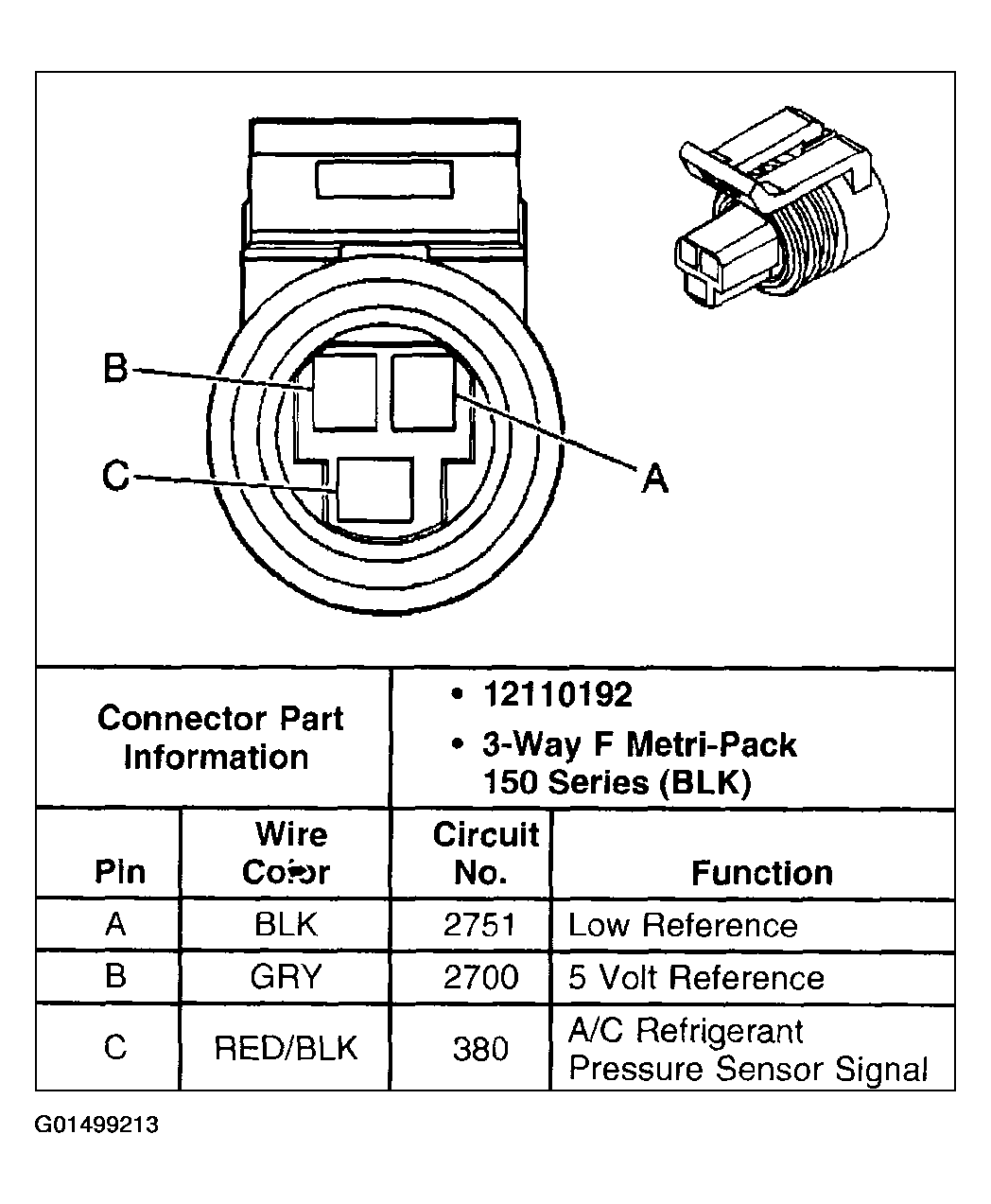

Fig 1: A/C Refrigerant Pressure Sensor

G01499213

Courtesy of GENERAL MOTORS CORP.

Fig 1: A/C Refrigerant Pressure Sensor

G01499126

Courtesy of GENERAL MOTORS CORP.
