A/C Compressor Clutch Connector End View

Fig 1: A/C Compressor Clutch

G01499212

Courtesy of GENERAL MOTORS CORP.

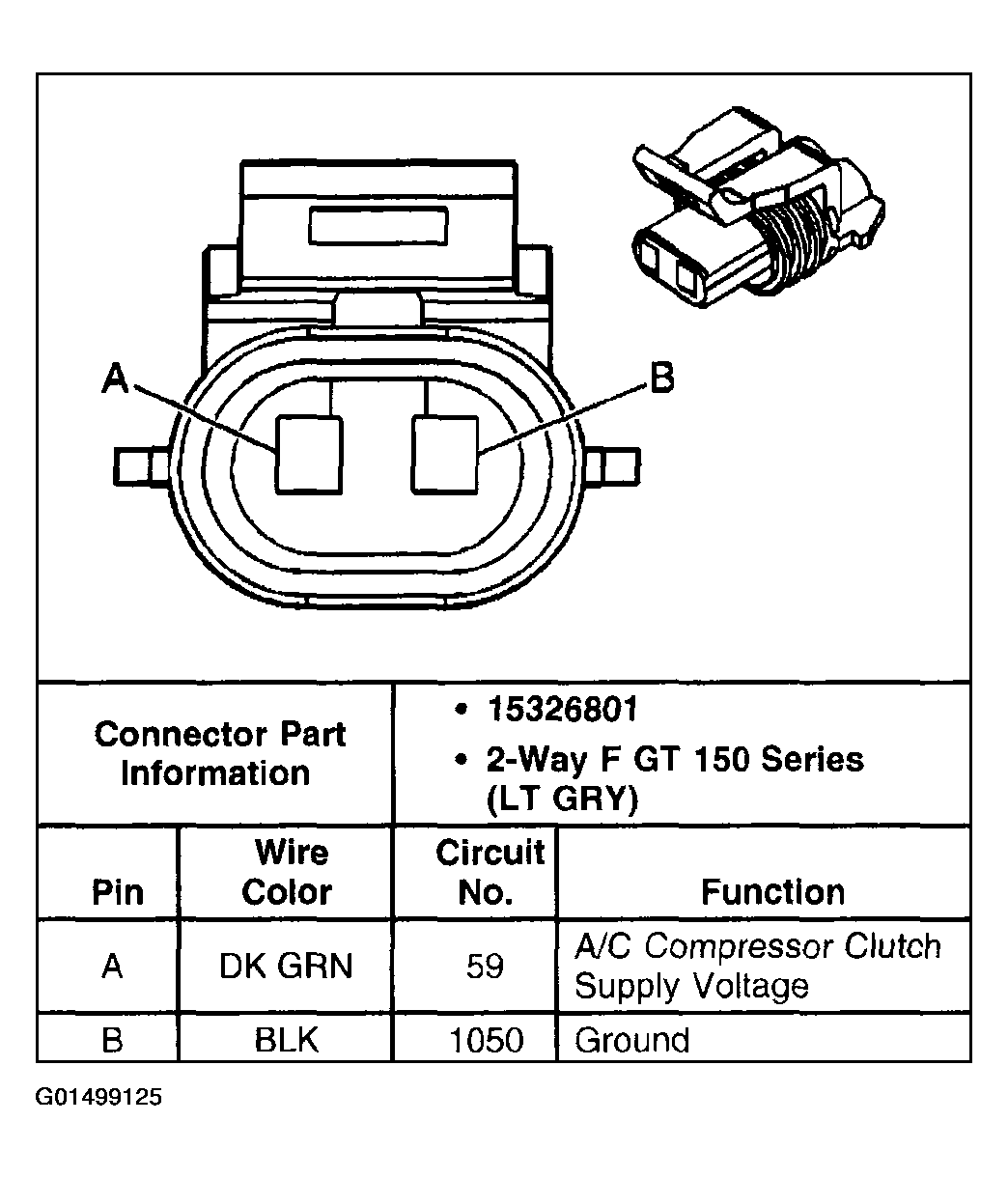

Fig 1: A/C Compressor Clutch

G01499125

Courtesy of GENERAL MOTORS CORP.
