Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector (2) to the power front seat switch.

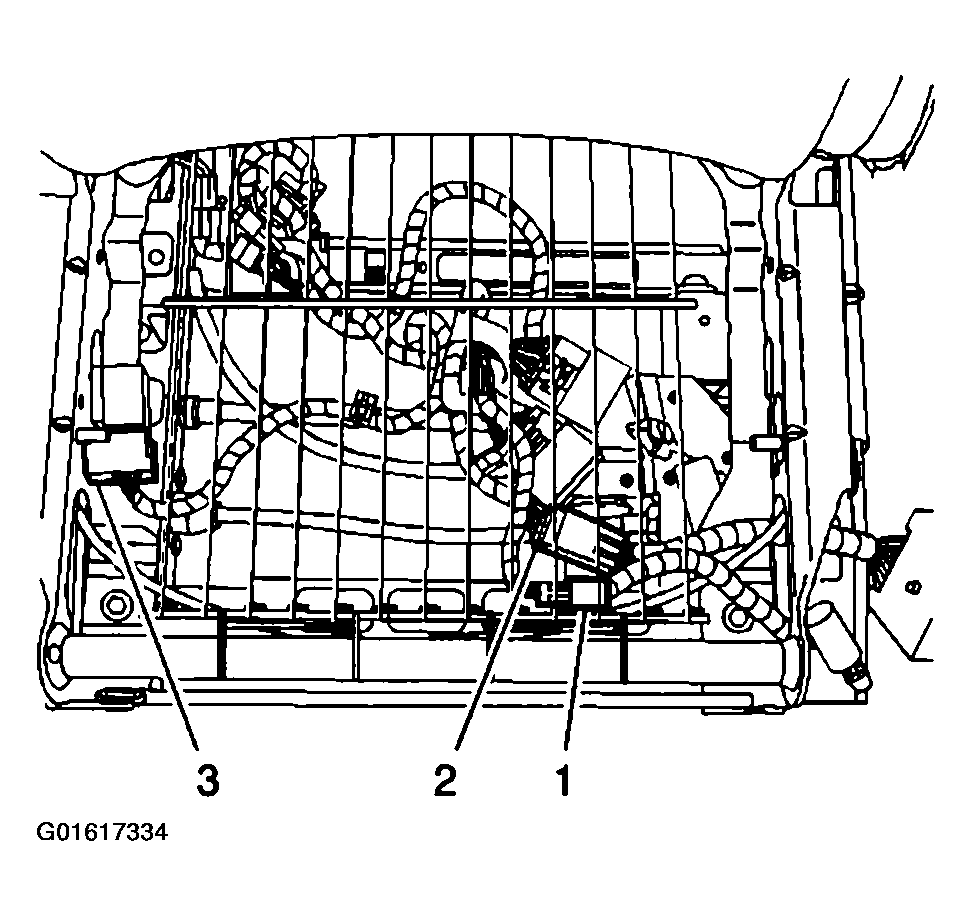

    Fig 1: Power Front Seat Switch Electrical Connector
    G01617334Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the screws that secure the seat switch to the trim panel.

    Tighten

    Tighten the screws to 3 N.m (27 lb in).

  3. Install the outer trim panel to the front seat cushion. Refer to Trim Panel Replacement - Front Seat .

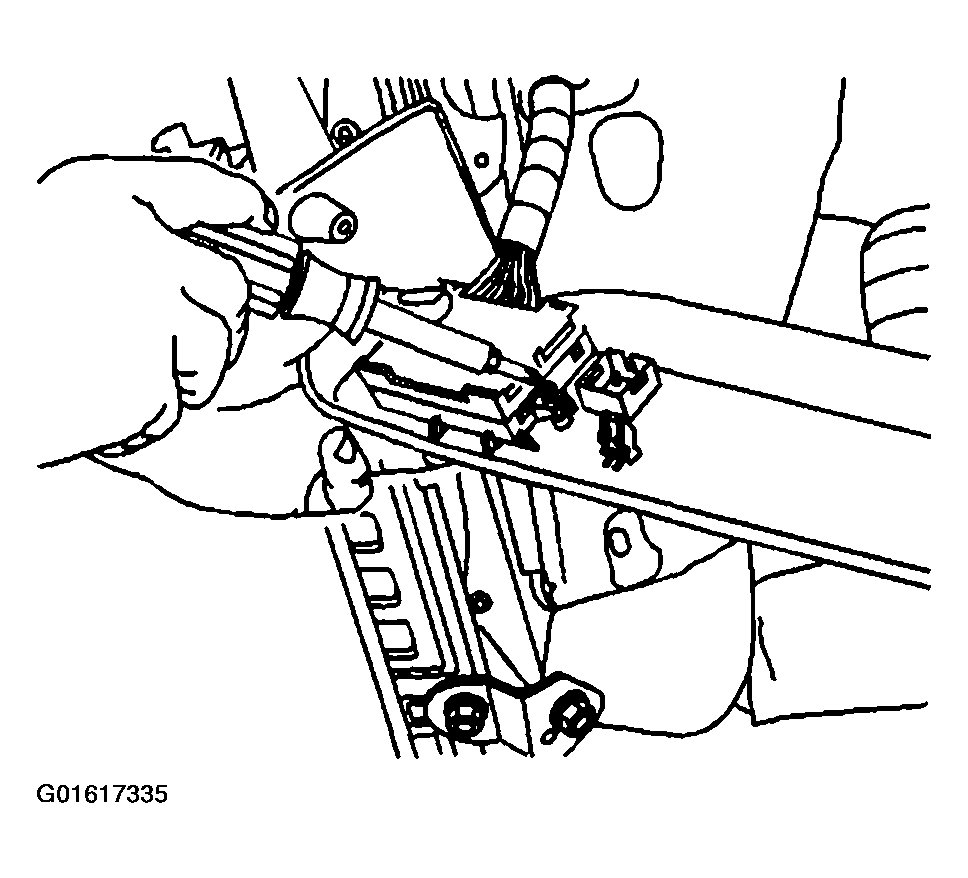

    Fig 2: Installing Seat Switch Screws
    G01617335Courtesy of GENERAL MOTORS CORP.
