Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat back to the front seat.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the pivot bolts which secure the recliner to the seat frame.

    Tighten

    Tighten the bolts to 24 N.m (18 lb in).

  3. Install the new roll pins to the hinge supports and to the recliner.
  4. Fasten the J-retainer on the outboard side of the seat cushion cover.

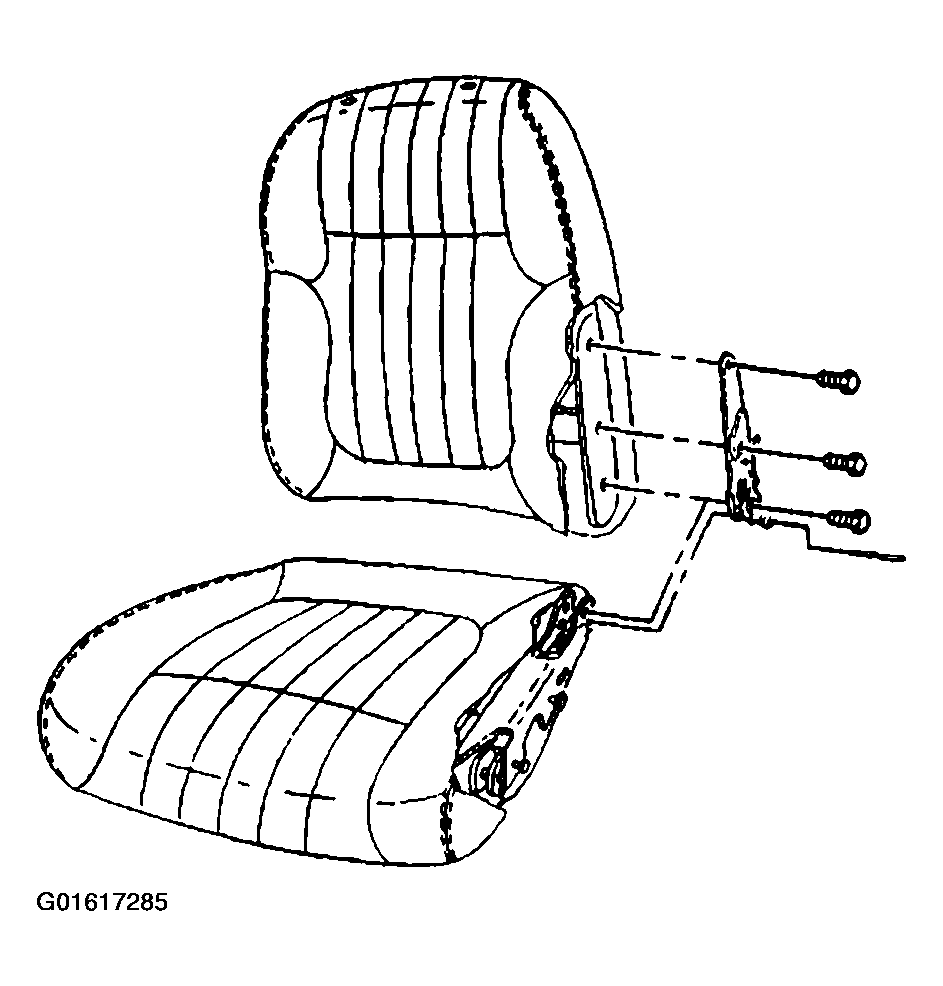

    Fig 1: Front Seat Back
    G01617285Courtesy of GENERAL MOTORS CORP.
  5. If equipped with power lumbar, connect the lumbar modules (1,2)

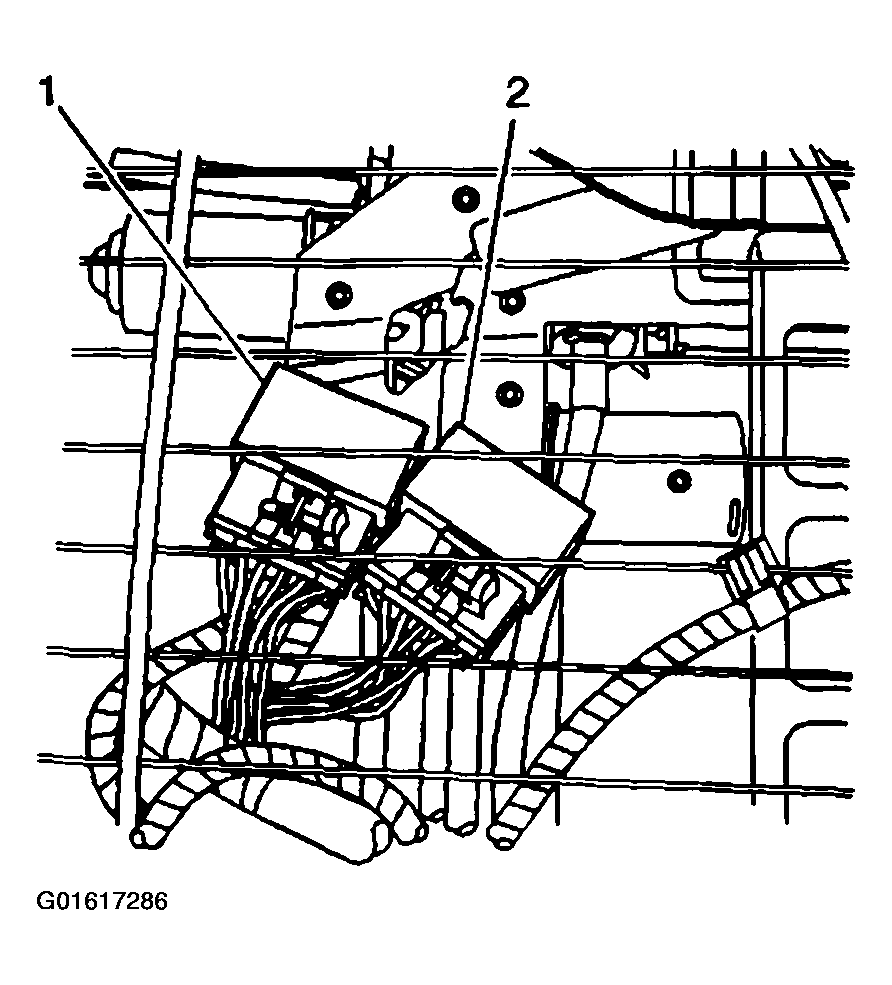

    Fig 2: Lumbar Modules
    G01617286Courtesy of GENERAL MOTORS CORP.
  6. If equipped with heated seats, connect the heater wire connector under the seat cushion.
  7. Install the front seat trim panel. Refer to Trim Panel Replacement - Front Seat .
  8. Install the E/Z entry manual release knob. Refer to Inertia Latch Replacement .
  9. Install the front seat. Refer to Seat Replacement - Front Bucket .

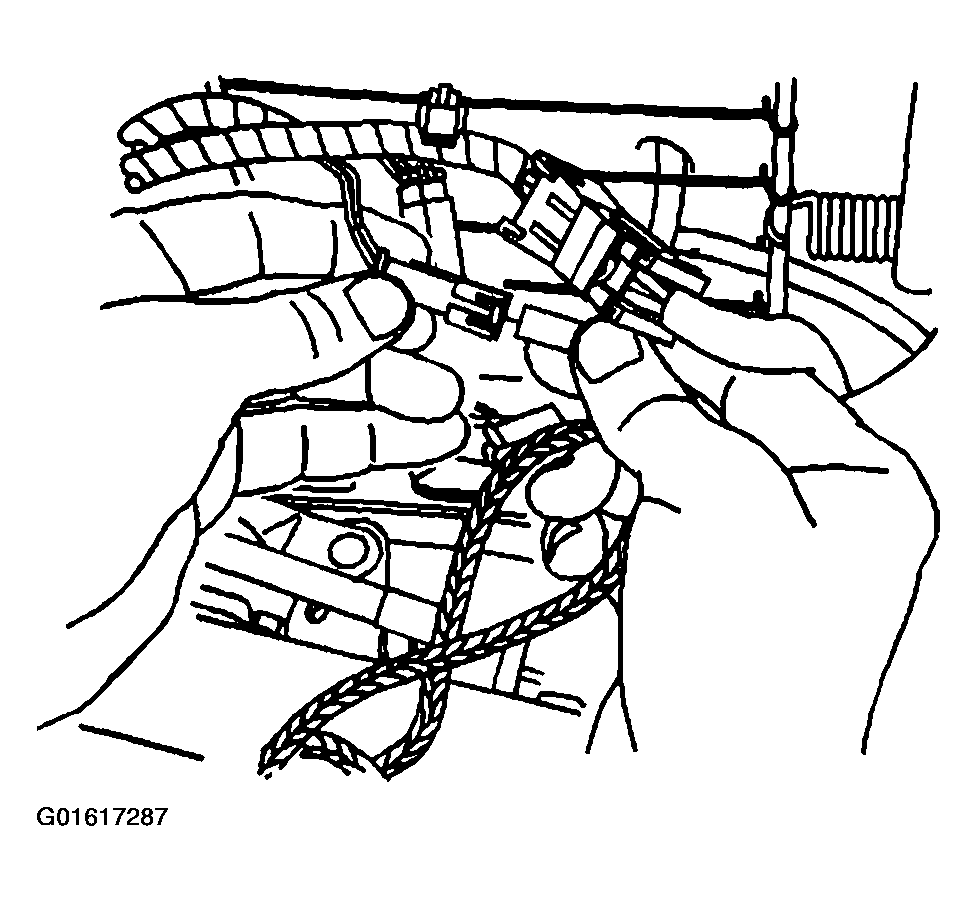

    Fig 3: Connecting Seat Back Heater Wire Connector
    G01617287Courtesy of GENERAL MOTORS CORP.
