Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front seat back frame to the seat recliner.
  2. Install the roll pins (2) to the recliner to the seat back. Use new roll pins.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the recliner to seat back frame pivot bolts.

    Tighten

    Tighten the recliner to seat back frame pivot bolts to 24 N.m (18 lb ft).

  4. Install the front seat back pad. Refer to Seat Back Pad Replacement - Front .

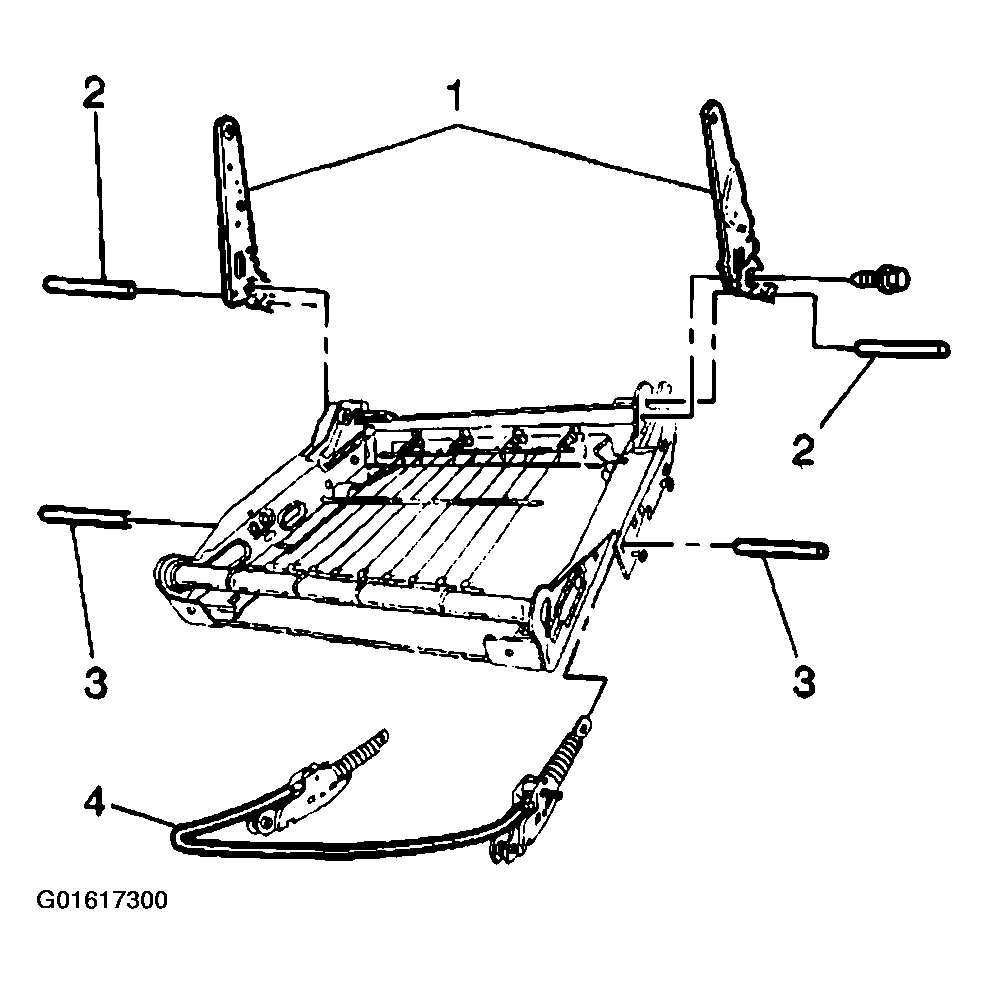

    Fig 1: Exploded View Of Front Seat Back Frame
    G01617300Courtesy of GENERAL MOTORS CORP.
