Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the outer seat cushion trim panel. Refer to Trim Panel Replacement - Front Seat .
  2. Use a small, flat-bladed tool to remove the lumbar control switch from the trim panel.

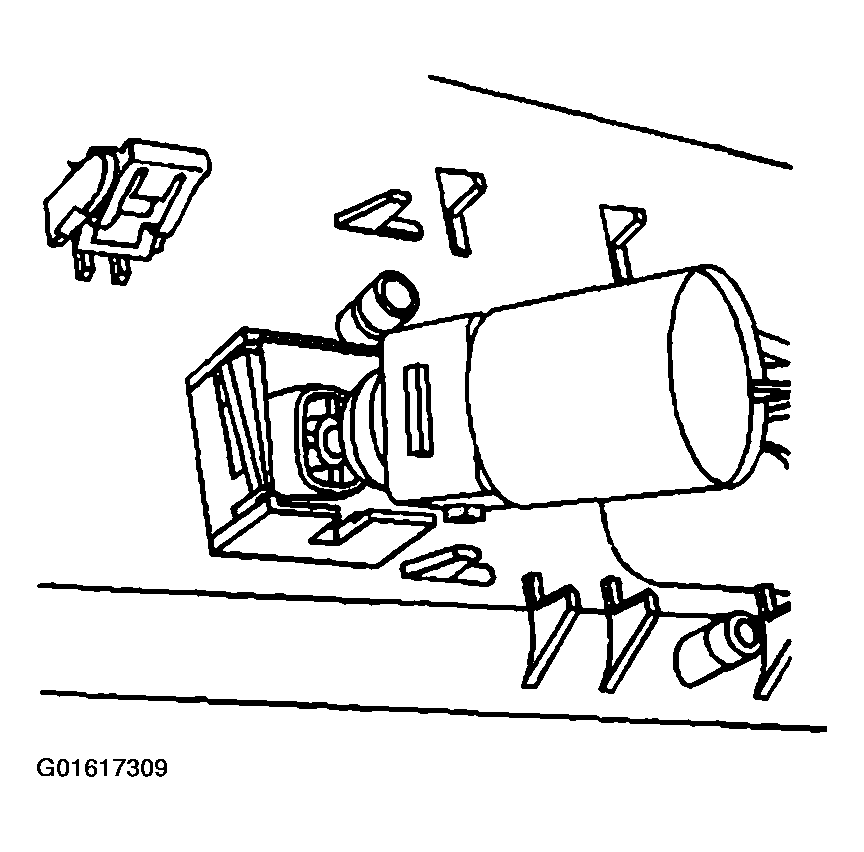

    Fig 1: Lumbar Control Switch
    G01617309Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector (1) from the seat harness.
  4. Remove the switch from the seat.

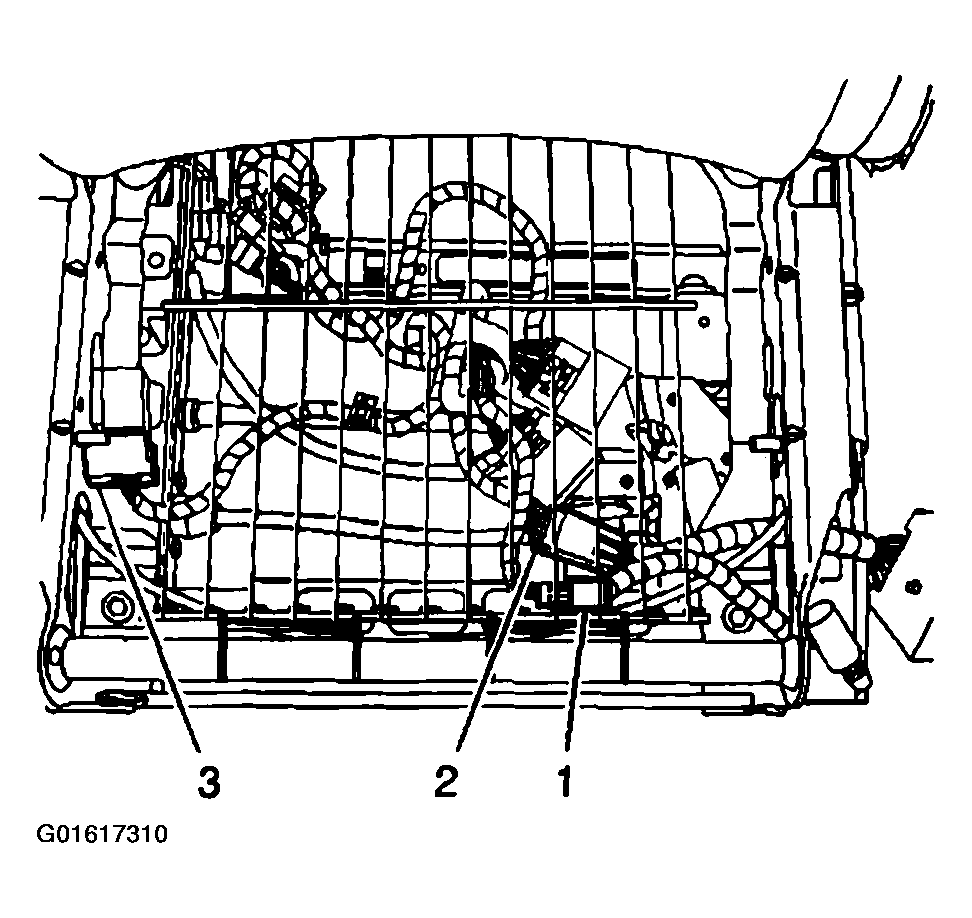

    Fig 2: Locating Seat Harness Electrical Connector
    G01617310Courtesy of GENERAL MOTORS CORP.
