Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the wiper transmission to the wiper drive system module tube frame.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install wiper transmission screws.

    Tighten

    Tighten the screws to 9 N.m (80 lb in).

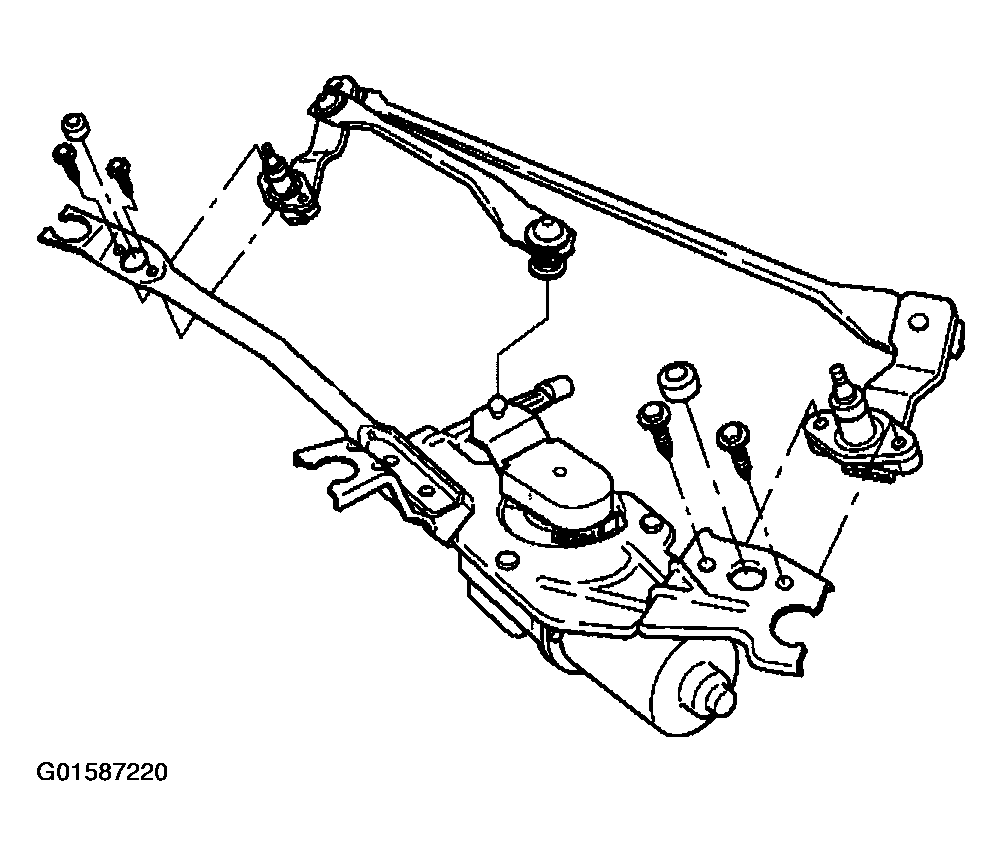

    Fig 1: Installing Wiper Transmission, Screws & Caps
    G01587220Courtesy of GENERAL MOTORS CORP.
  3. Install the wiper transmission caps.
  4. Install the wiper drive system module. Refer to WIPER DRIVE SYSTEM MODULE REPLACEMENT  .
  5. Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
  6. Operate the windshield wipers and inspect for proper operation.
