Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the water shield and shaft seal onto the wiper motor.
  2. Position the wiper motor to the wiper drive system module.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the wiper motor screws.

    Tighten

    Tighten the screws to 7 N.m (62 lb in).

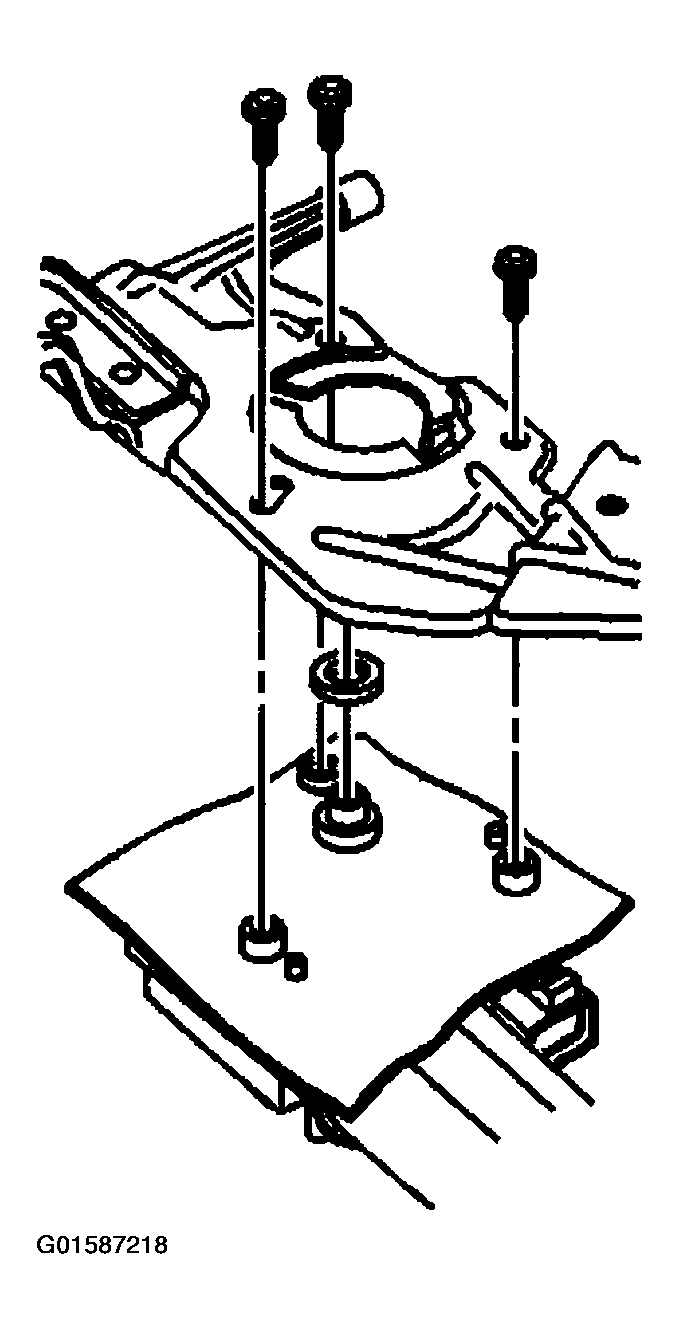

    Fig 1: Installing Wiper Motor & Screws
    G01587218Courtesy of GENERAL MOTORS CORP.
  4. Install the wiper drive system module. Refer to WIPER DRIVE SYSTEM MODULE REPLACEMENT  .
  5. Install the wiper motor crank arm. Refer to WIPER MOTOR CRANK ARM REPLACEMENT  .
  6. Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
