Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the wiper motor cover to the wiper motor.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the wiper motor cover screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

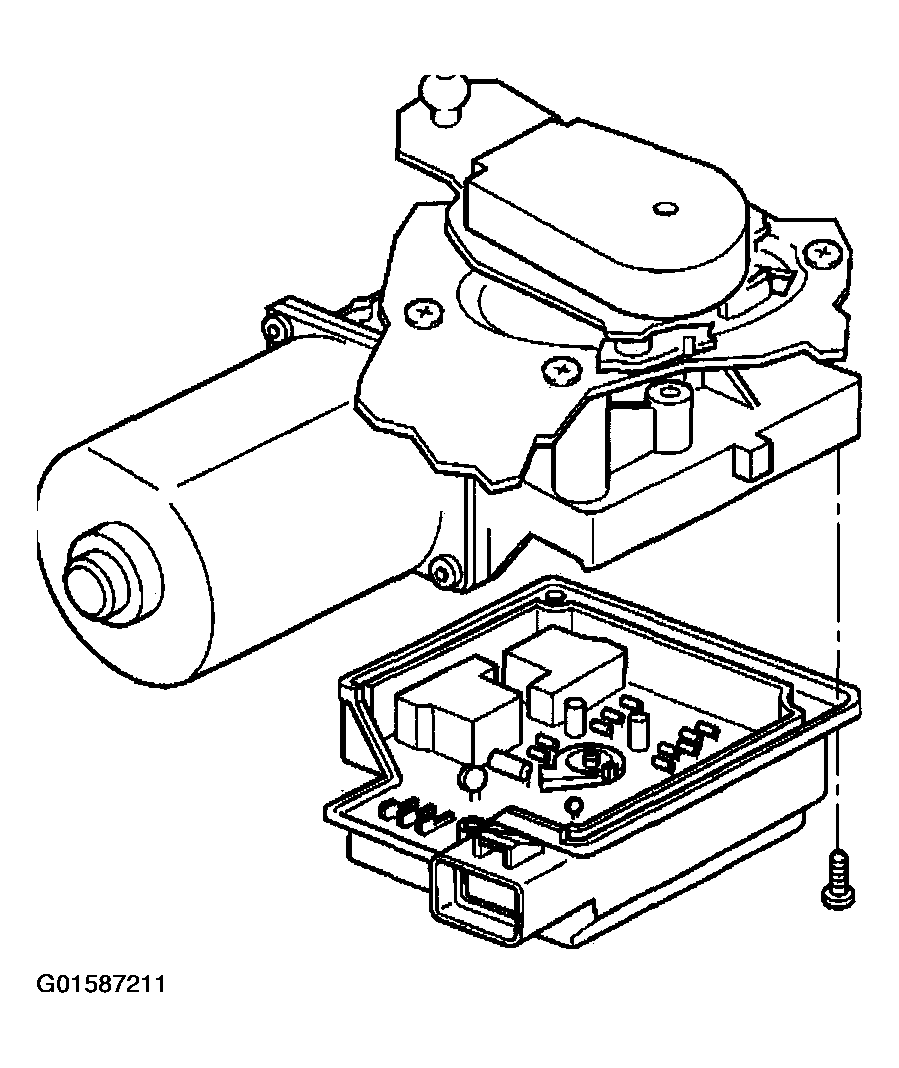

    Fig 1: Installing Wiper Motor Cover & Screws
    G01587211Courtesy of GENERAL MOTORS CORP.
  3. Install the wiper drive system module. Refer to WIPER DRIVE SYSTEM MODULE REPLACEMENT  .
  4. Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
  5. Operate the windshield wipers and inspect for proper operation.
