Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the washer solvent container to the right frame rail.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the washer solvent container bracket screw.

    Tighten

    Tighten the screw to 10 N.m (89 lb in).

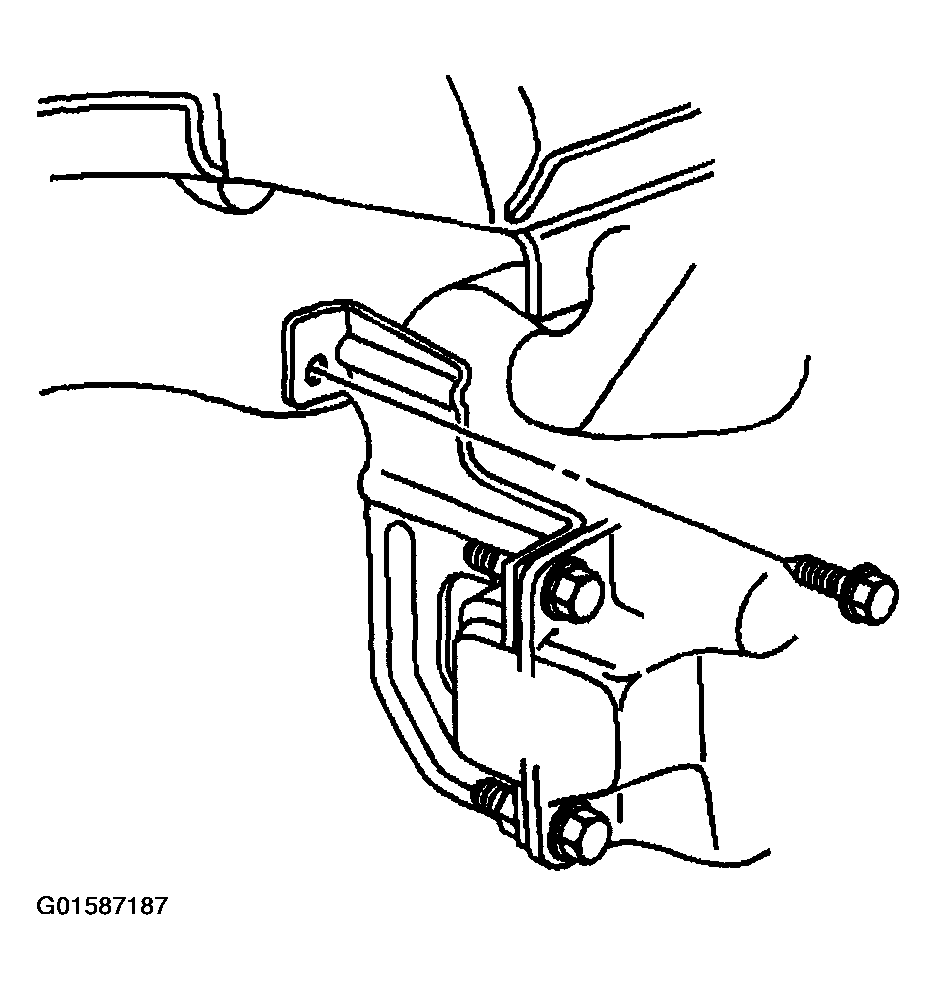

    Fig 1: Installing Washer Solvent Container Bracket Screw
    G01587187Courtesy of GENERAL MOTORS CORP.
  3. Connect the washer solvent level sensor electrical connector.
  4. Connect the washer pump electrical connector.
  5. Connect the washer pump hose.
  6. Install the front fender liner. Refer to FRONT FENDER LINER REPLACEMENT in Body Front End.
    Fig 2: Connecting Water Pump & Washer Solvent Level Sensor Electrical Connectors
    G01587188Courtesy of GENERAL MOTORS CORP.
  7. Install the washer solvent container screws.

    Tighten

    Tighten the screws to 10 N.m (89 lb in).

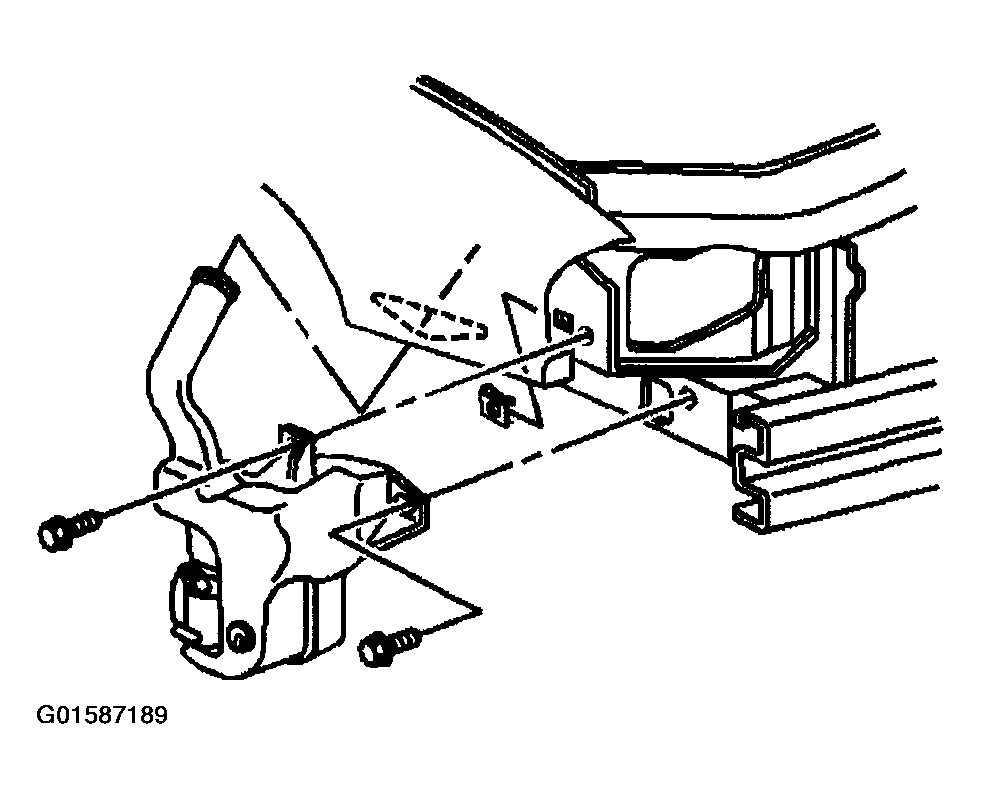

    Fig 3: Installing Washer Solvent Container Screws
    G01587189Courtesy of GENERAL MOTORS CORP.
  8. Install the right headlamp assembly. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB AND/OR CORNERING, SIDEMARKER, PARK, TURN SIGNAL BULB REPLACEMENT in Lighting Systems.
  9. Install the washer solvent container filler neck. Refer to WASHER SOLVENT CONTAINER FILLER NECK REPLACEMENT  .
  10. Fill the washer solvent container with washer solvent.
