Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cooling fan motors onto the fan shroud.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the cooling fan motors bolts.

    Tighten

    Tighten the bolts to 6 N.m (53 lb in).

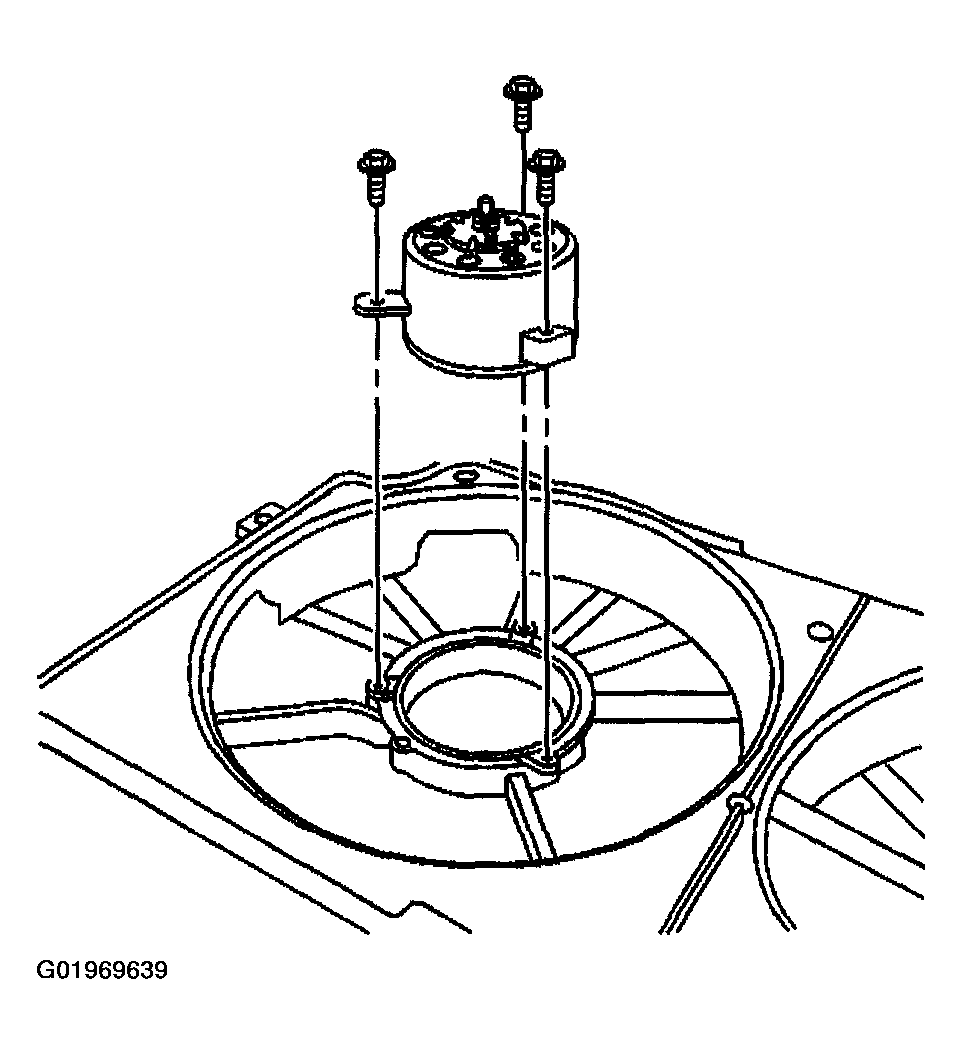

    Fig 1: Installing Cooling Fan Motors & Bolts
    G01969639Courtesy of GENERAL MOTORS CORP.
    CAUTION: If a fan blade is bent or damaged in any way, do not repair or reuse the damaged part. Always replace a bent or damaged fan blade. Fan blades that have been damaged can not be assured of proper balance and could fail and fly apart during subsequent use. This creates an extremely dangerous situation.
    The fan blades must remain in proper balance. You cannot assure fan blade balance once a fan blade has been bent or damaged. A fan blade that is not in proper balance could fail and fly apart during use, creating an extremely dangerous situation.
  3. Install the cooling fan blades.
  4. Install the cooling fan blade nuts.

    Tighten

    Tighten the nuts to 6 N.m (53 lb in).

  5. Install the cooling fan electrical harness to the fan shroud.

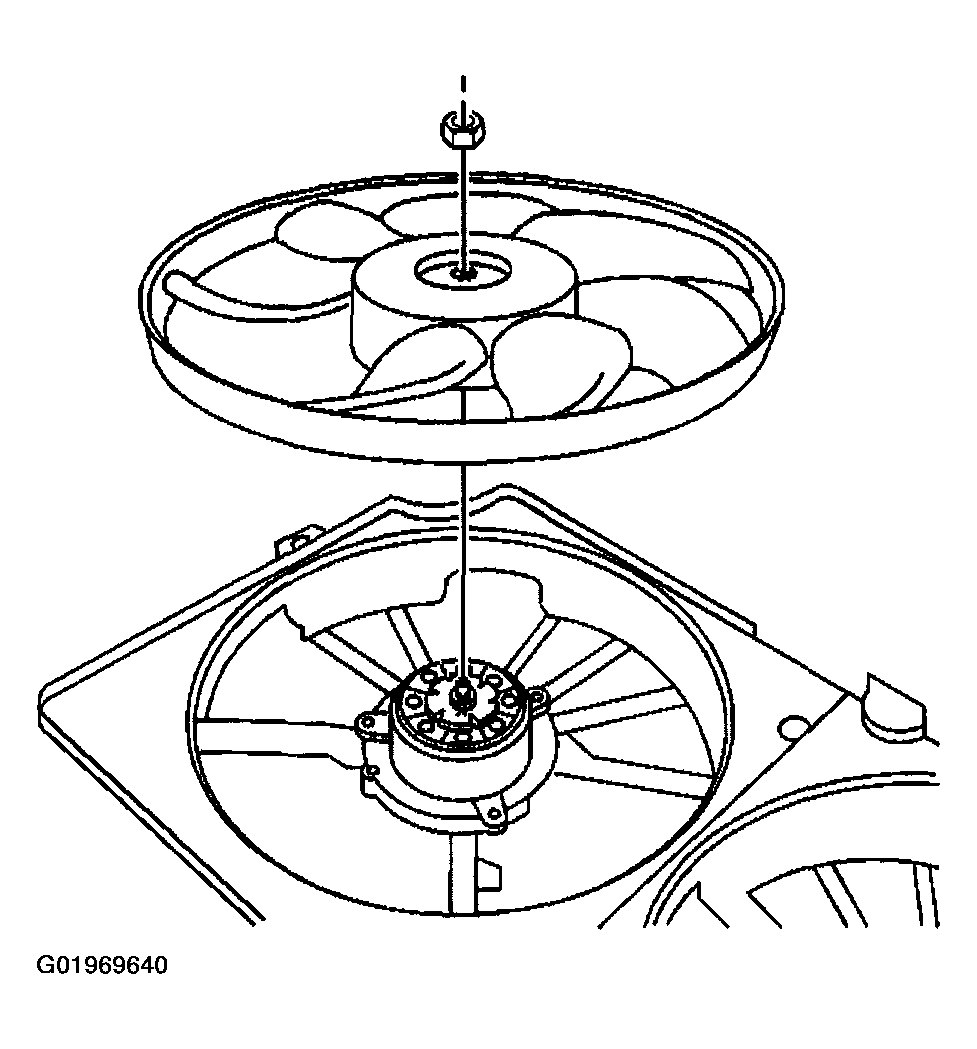

    Fig 2: Installing Cooling Fan Blades & Nuts
    G01969640Courtesy of GENERAL MOTORS CORP.
  6. Connect the cooling fan wiring harness to each cooling fan motor.
  7. Install the cooling fans. Refer to COOLING FAN REPLACEMENT - ELECTRIC  .
