Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the left and right side stabilizer shaft insulators (1) to the stabilizer shaft (2).
    Fig 1: Installing Stabilizer Shaft Insulators
    G01569419Courtesy of GENERAL MOTORS CORP.
  2. Install the left and right side stabilizer shaft insulator brackets.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the left and right side stabilizer shaft insulator bracket bolts.

    Tighten

    Tighten the stabilizer shaft insulator bracket bolts to 48 N.m (35 lb in).

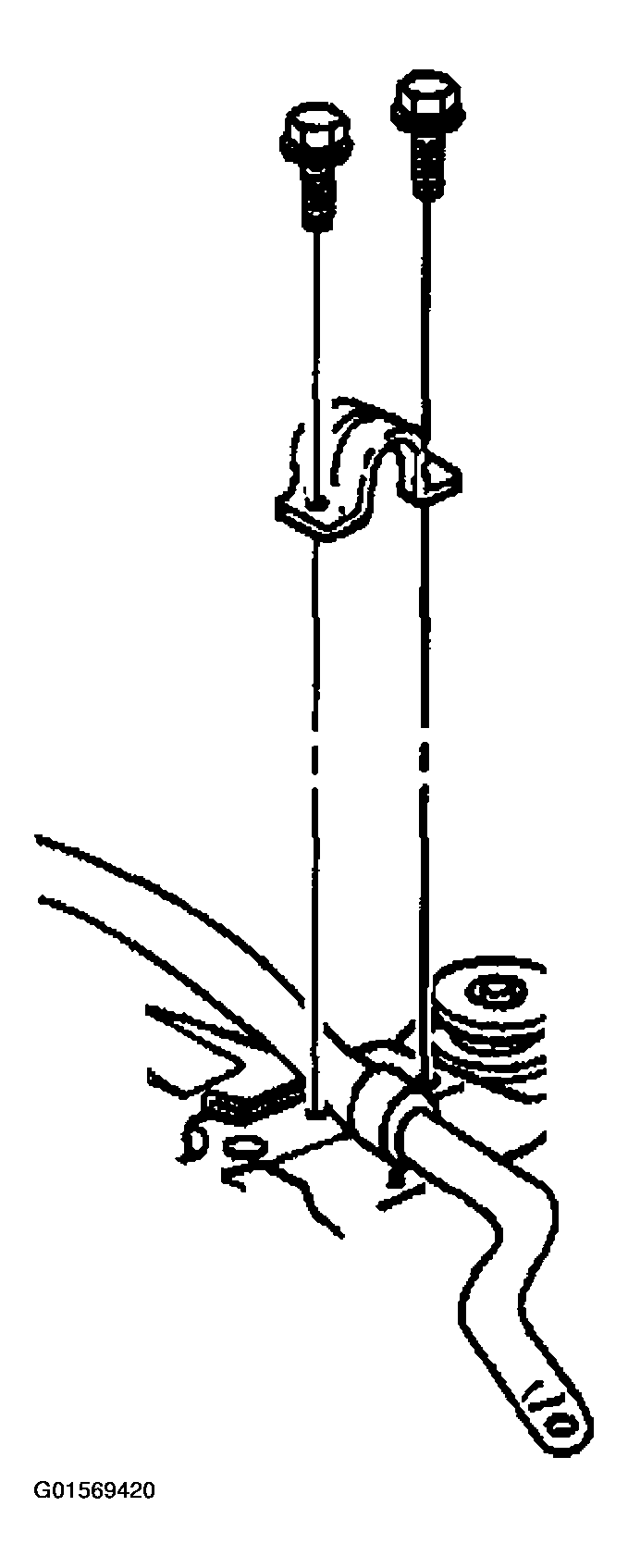

    Fig 2: Installing Stabilizer Shaft Insulator Brackets
    G01569420Courtesy of GENERAL MOTORS CORP.
  4. Lower the vehicle.
