Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

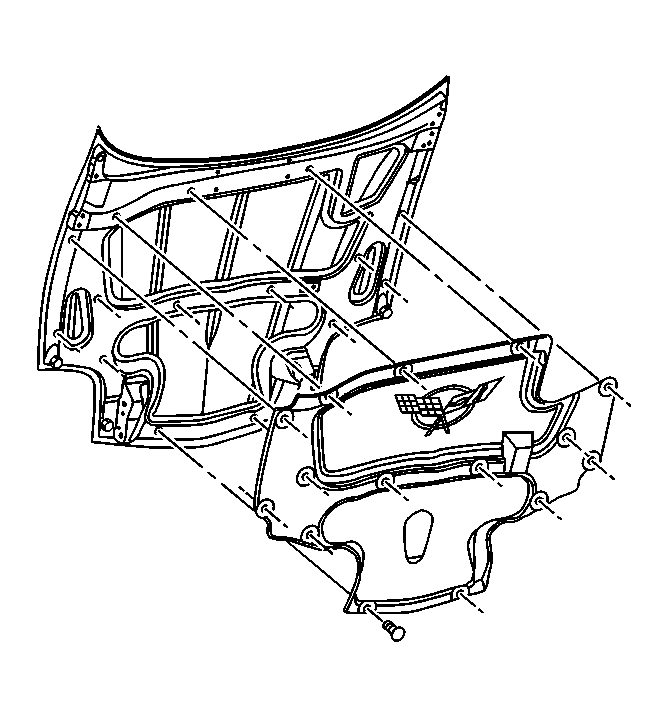

    Fig 1: Insulator & Push-In Fasteners
    GM71269Courtesy of GENERAL MOTORS CORP.
  1. Position the insulator to the hood.
  2. Install the push-in fasteners attaching the insulator.
