Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector (2) to the power front seat switch.

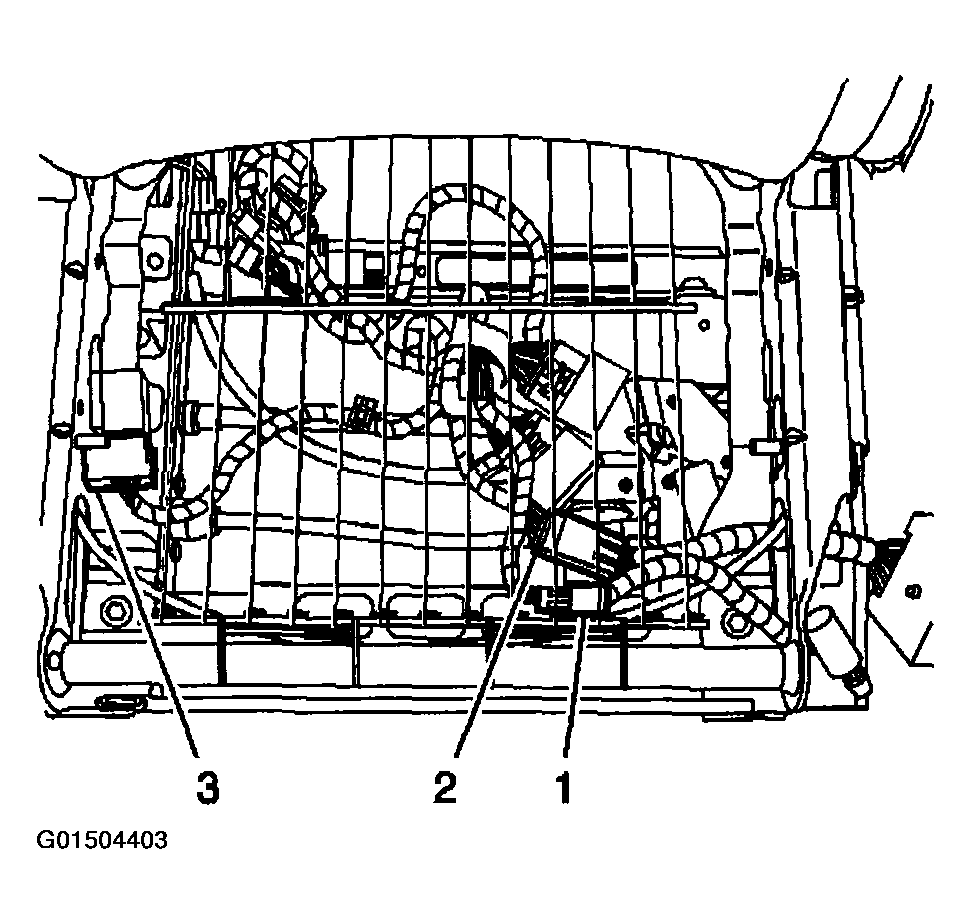

    Fig 1: Connecting Electrical Connector To Power Front Seat Switch
    G01504403Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the power seat switch screws.

    Tighten

    Tighten the screws to 3 N.m (27 lb in).

  3. Install the outer trim panel to the front seat cushion. Refer to TRIM PANEL REPLACEMENT - FRONT SEAT  .

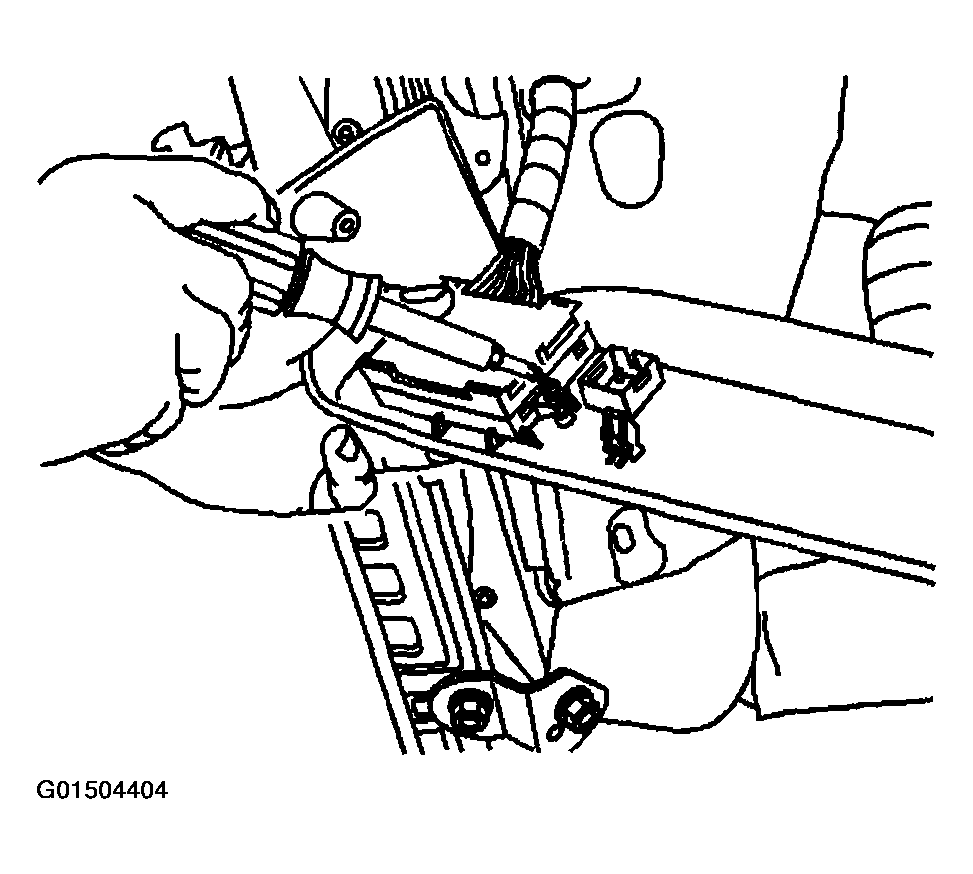

    Fig 2: Installing Power Seat Switch Screws
    G01504404Courtesy of GENERAL MOTORS CORP.
