Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front seat back frame to the seat recliner.
  2. Install the roll pins (2) to the recliner to the seat back. Use new roll pins.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the recliner to seat back frame pivot bolts.

    Tighten

    Tighten the recliner to seat back frame pivot bolts to 24 N.m (18 lb ft).

  4. Install the front seat back pad. Refer to SEAT BACK PAD REPLACEMENT - FRONT  .

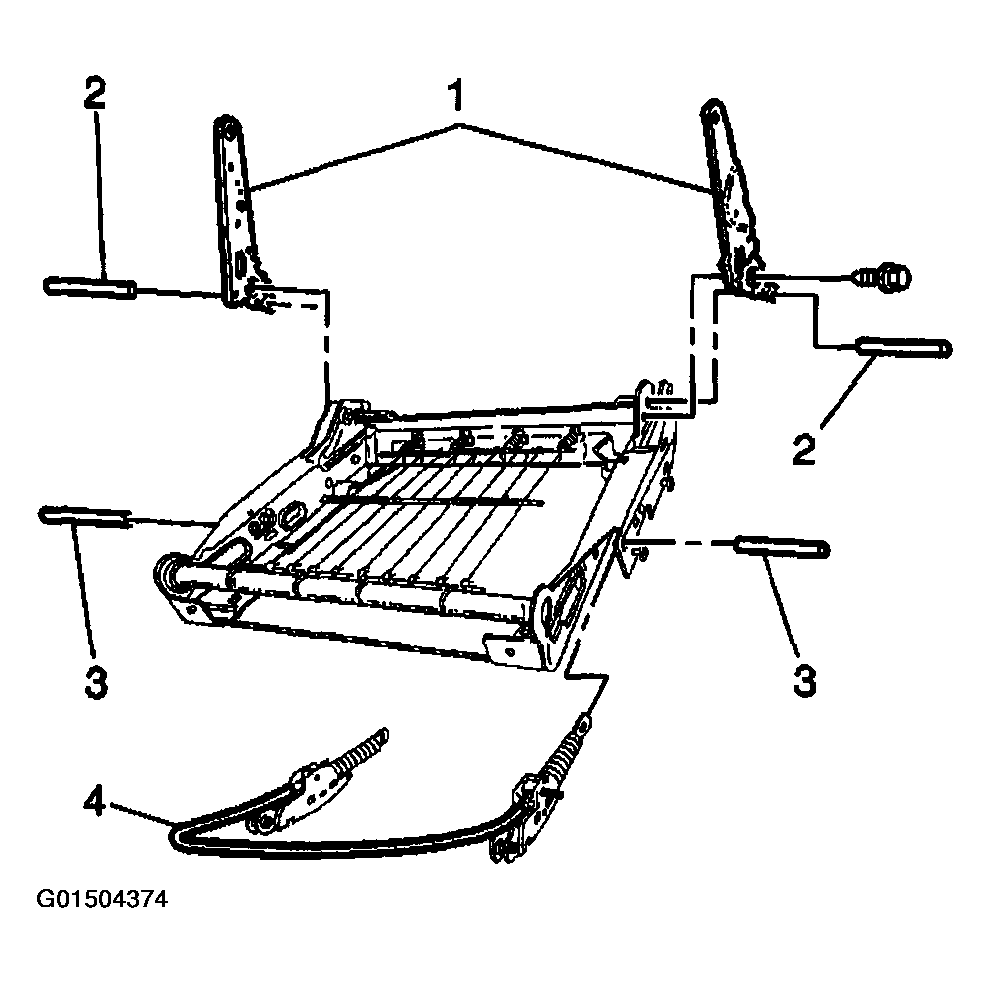

    Fig 1: Installing Front Seat Back Frame To Seat Recliner
    G01504374Courtesy of GENERAL MOTORS CORP.
