Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the lumbar control switch to the seat.
  2. Connect the electrical connector (1) to the seat harness.

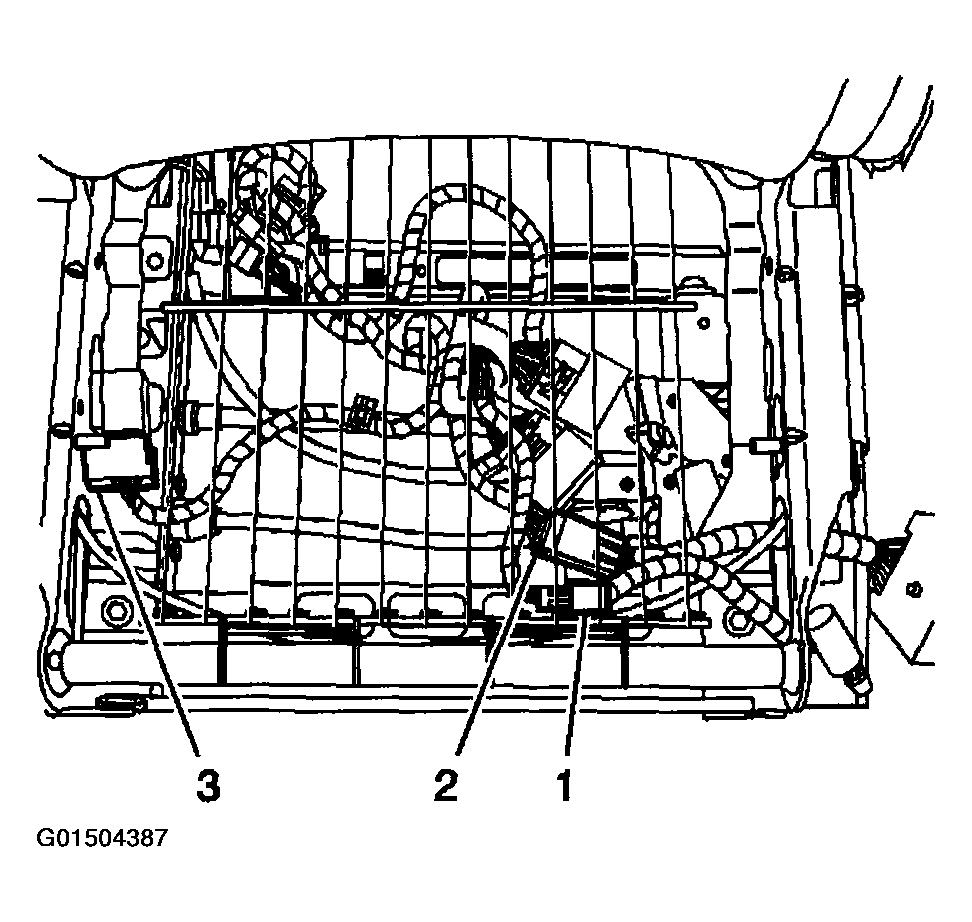

    Fig 1: Connecting Electrical Connector To Seat Harness
    G01504387Courtesy of GENERAL MOTORS CORP.
  3. Press the switch into the mount on the trim panel.
  4. Install the trim panel. Refer to TRIM PANEL REPLACEMENT - FRONT SEAT  .

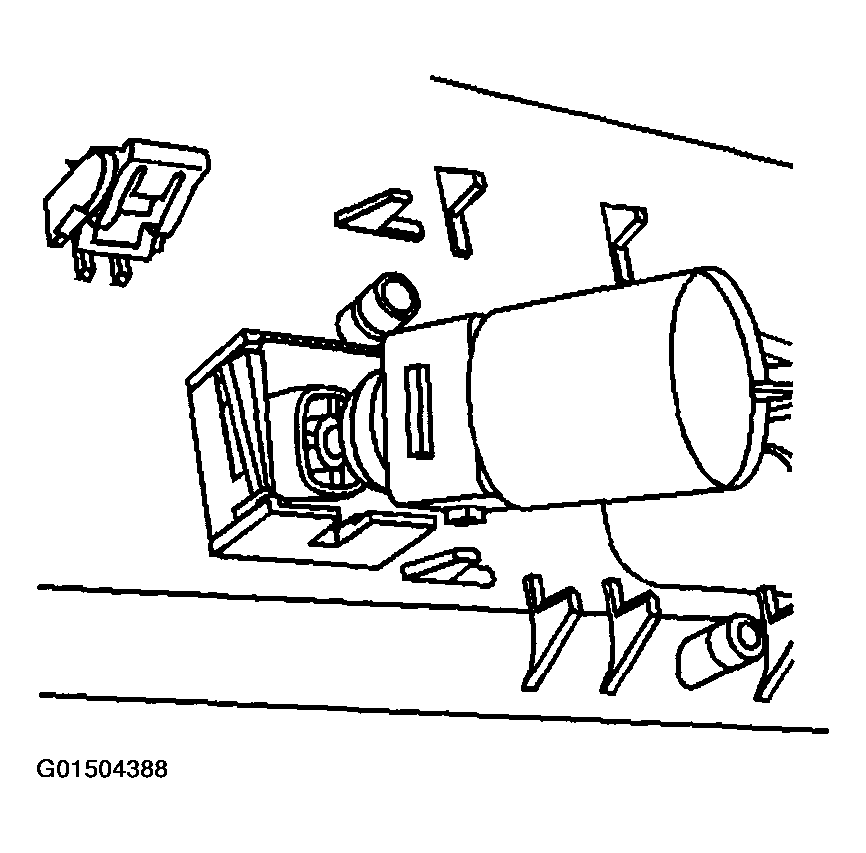

    Fig 2: Installing Lumbar Control switch Into Mount On Trim Panel
    G01504388Courtesy of GENERAL MOTORS CORP.
